Identifying Hose Connections-430 Loader/970 and 1070 Tractors

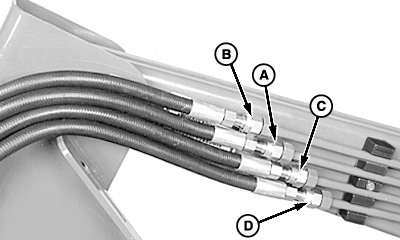

Identify hoses by installing color-coded dust covers on end of hoses.

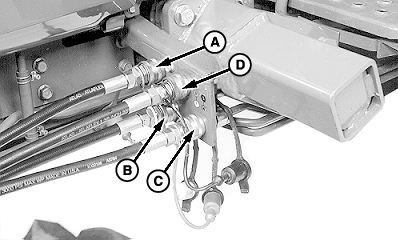

Ports on plate that holds couplers on tractor are identified by both numbers and colors.

Key Port Cap Color Hydraulic Function
A 2 Red or Silver Bucket Cylinder-Head End
B 1 Yellow Bucket Cylinder-Rod End
C 4 Green Lift Cylinder-Head End
D 3 Black Lift Cylinder-Rod End


W05999
W06005

OUMX005,0001804 -19-23FEB04-1/1
