Identifying Hose Connections-430 and 460 Loader/4000 Tractors with Optional Third Function

Identify hoses by installing color-coded dust covers on end of hoses.

Ports on plate that holds couplers on tractor are identified by both numbers and colors.

Key Port Cap Color Hydraulic Function
A 2 Red or Silver Bucket Cylinder-Head End
B 1 Yellow Bucket Cylinder-Rod End
C 4 Green Lift Cylinder-Head End
D 3 Black Lift Cylinder-Rod End
E   Orange Attachment Cylinder-Head End
F   Blue Attachment Cylinder-Rod End

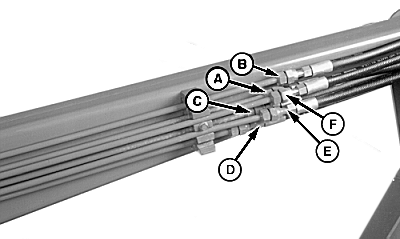

W04156

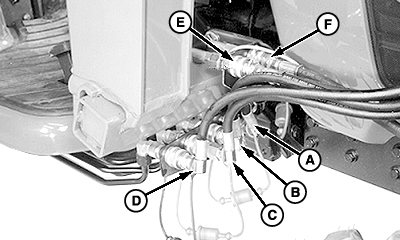

W06149

430 Loader

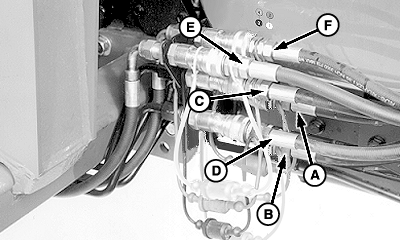

W06150

460 Loader

OUO6038,0000262 -19-18DEC00-1/1
