Preparing to Remove Loader

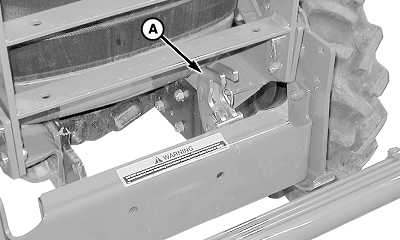

1. Remove spring pin and pin and raise latch plate retainer (A), as shown.


A-Latch Plate Retainer

W06038

OUO6038,0001902 -19-15MAR04-1/3

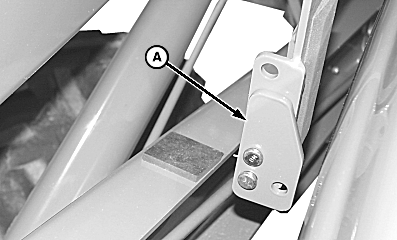

2. If equipped with XTRA ARMOR™ Hood Guard; Remove spring pin and pin and raise latch (A) as shown. Repeat on opposite side.


A-Latch

W04135

Left-Hand Side Shown

OUO6038,0001902 -19-15MAR04-2/3

causym CAUTION: To help prevent personal injury caused falling or shifting loader, always detach loader on a hard level surface. Do not detach loader equipped with a pallet fork or bale spear, use of a materials bucket is recommended.

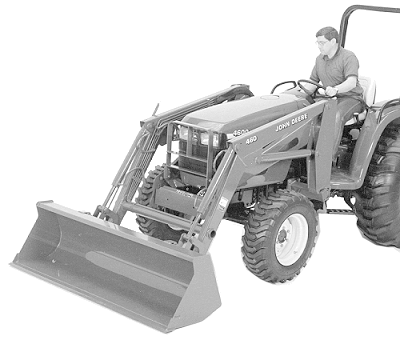

3. Be sure loader is equipped with materials bucket.

4. Start tractor engine.

5. Level bucket and lower to ground.

6. Retract lift cylinders and relieve weight from front tires.

W14000
W06039

OUO6038,0001902 -19-15MAR04-3/3
