Accessing Front of Tractor-4000 Series Tractors

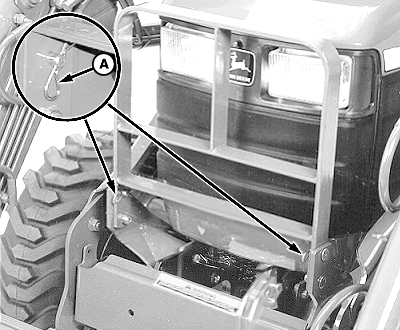

1. Remove spring pins (A) from pins in each side of the hood guard.

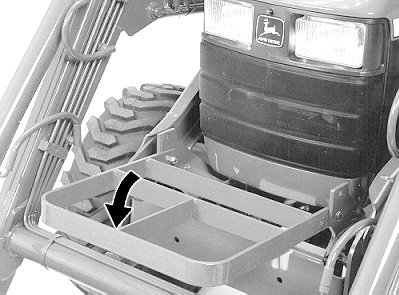

2. Remove drilled pins and swing hood guard down for access to front of tractor.


A-Spring Pins

W06145
W06146

OUO6038,000194C -19-06MAY03-1/1
