Preparing to Attach Loader

causym CAUTION: To help prevent personal injury from tractor instability, be sure to prepare tractor for loader operation as outlined in Preparing the Tractor section.

1. Make sure tractor is prepared for loader operation. (See Preparing the Tractor section.)

2. Check loader for any damaged or missing parts.

3. Be sure all hydraulic fittings on loader and tractor are free of dirt.

W06908

OUO6038,0001B4A -19-05AUG04-1/2

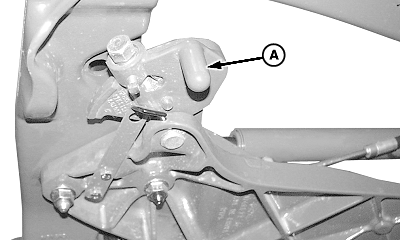

4. Latches (A) should be in "unlocked" position as shown.


A-Latch (1 each side)

W06968

OUO6038,0001B4A -19-05AUG04-2/2
