Setting Front Tread Width

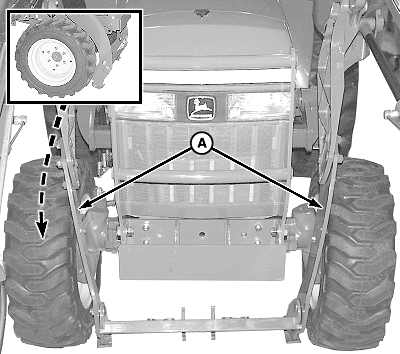

300 Loader; Set wheels at maximum tread setting (invert wheels) to obtain maximum clearance between tires and parking stand (A) when loader is detached or attached. (Refer to SELECTING FRONT TIRE ROLLING DIRECTION in Operating section of tractor Operator's Manual.)

A-Parking Stand

OUO6038,0001B5F -19-09SEP04-1/2

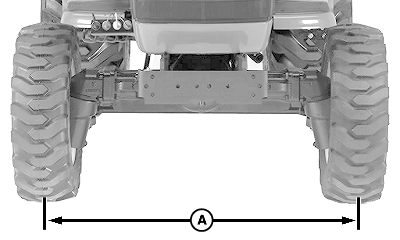

300X and 300CX Loaders; Front tread width (A) should be set to the same tread width as rear tires whenever possible. (See SELECTING REAR TREAD WIDTH in this section.)

There are no minimum tread settings.

A-Tread Width

OUO6038,0001B5F -19-09SEP04-2/2
