Adding Ballast to 3-Point Hitch

Weight can be added to the ballast box (A) by adding material such as sand or concrete. If more weight is required, tractor Quik-tach weights may be used.

NOTE: A ballast box extension is available to increase capacity of box. (See your John Deere dealer.)

A 3-Point Hitch mounted implement may be used as ballast, but it must meet weight requirements of the ballast chart. (See your John Deere dealer.)

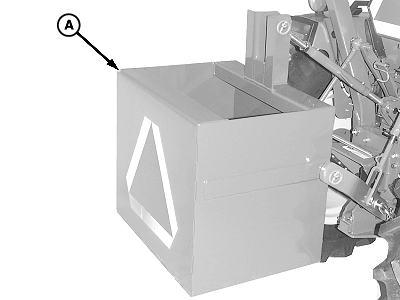

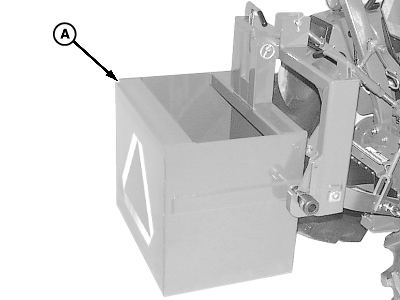

A-Ballast Box

OUO6038,0001B6E -19-10SEP04-1/1
