Attaching and Detaching Attachment

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

1. 300CX; If equipped with 4-in-1 Bucket, Boom-Mounted Front Blade with Hydraulic Angling Kit or Grapple Bucket; Disconnect hydraulic hoses from attachment as follows:

a. Move control lever(s) back and forth and side-to-side (if applicable) several times to relieve system pressure. (See your tractor Operator's Manual.)

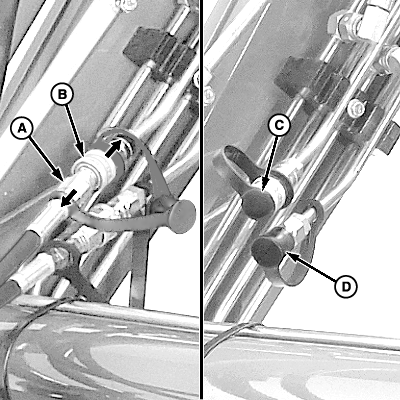

b. Push and hold collar on female coupler (B).

c. Disconnect male coupler (A).

d. Release collar on female coupler.

e. Repeat Steps b-d for remaining hydraulic hose connection.

f. Insert plug (C) into female coupler and place cap (D) on male coupler. Install plug and cap on female and male couplers on hydraulic hoses.

X9811
W07029


A-Coupler, Male
B-Coupler, Female
C-Plug (1 per female coupler)
D-Cap (1 per male coupler)

OUO6038,0001B70 -19-17SEP04-1/2

NOTE: Procedure is the same for all attachments. Bucket attachment shown.

2. Start tractor engine.

3. Release parking brake and/or place transmission in NEUTRAL.

4. Roll attachment back slightly and raise boom approximately 460 mm (18 in.) above ground level.

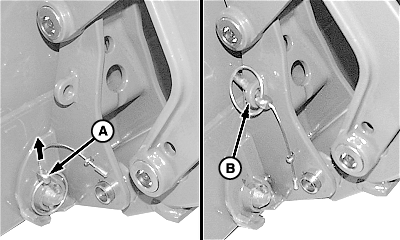

5. Remove quick lock pin (A) from each side of attachment.

6. Store pins in storage position (B).

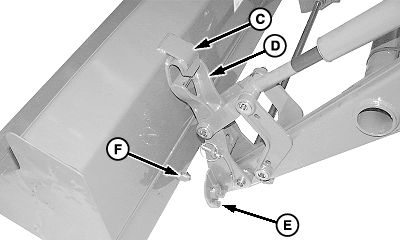

7. Extend bucket cylinders until pin (F) releases from holder strap (E) on each side of attachment.

8. Lower loader boom, place transmission in REVERSE and move away from attachment. Holder (D) will release from hook (C) on each side of attachment.

9. Set parking brake and/or place transmission in PARK. Shut off tractor engine and remove key.

10. Attach attachment in reverse order as detached.

W06637
W06638


A-Quick Lock Pin
B-Storage Position
C-Hook
D-Holder
E-Holder Strap
F-Bucket Pin

OUO6038,0001B70 -19-17SEP04-2/2
