Approved Tractors

causym CAUTION: To help prevent personal injury or death caused by tractor rollover, be sure tractor is equipped with hitch ballast, rollover protective structure (ROPS) and approved seat belt.

For better stability, use a tractor with adjustable front axle. DO NOT use loader on tractor with a Roll-O-Matic front end, single or double front wheels.

NOTE: Loader is not compatible with "High Clearance" or "HI-CROP" tractors.

30, 40, 50, and 55 Series tractors require side frames (tractor equipment).

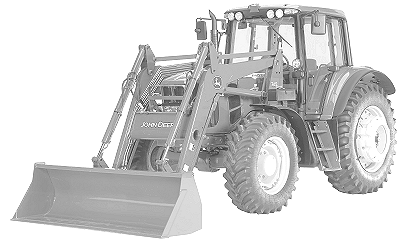

W08702

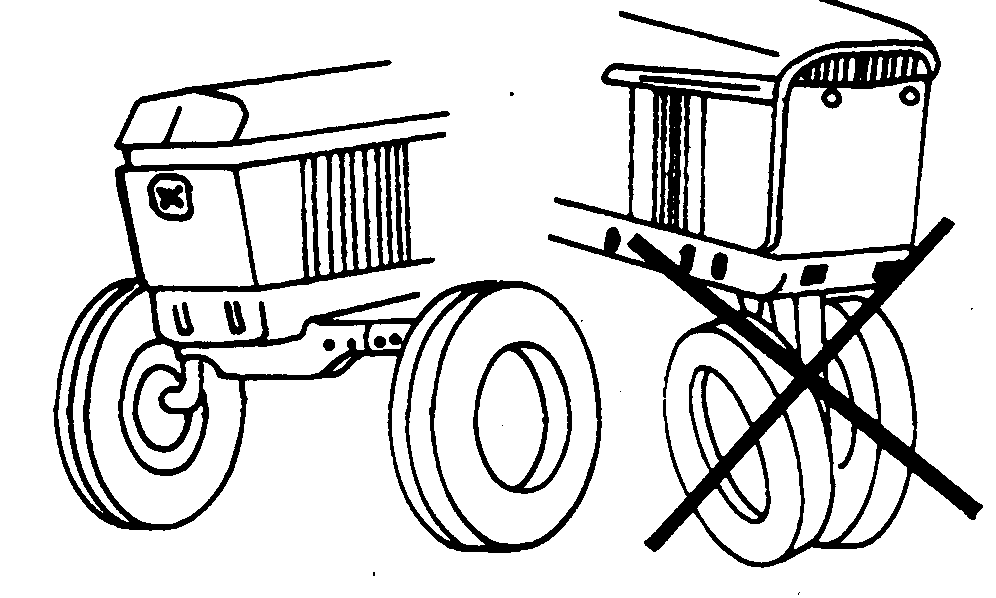

W11379

OUMX005,00027E9 -19-21JUN07-1/2

Row Crop Tractor Model Series
7000 6000 55 50 40 30
7130* 7600 MFWD 6605 MFWD* 4055 3050** 3040** 4030
7130 MFWD* 7610 6615 MFWD* 4055 MFWD 3050 MFWD** 3040 HFWD** 4030 HFWD
7200* 7610 MFWD 6715 MFWD* 4255 3050HL** 3140** 4230
7200 MFWD* 7410* 6510 MFWD** 4255 MFWD 3050HL MFWD** 3140 MFWD** 4230 HFWD
7210* 7410 MFWD* 6510SE MFWD** 4455 3350** 3140 HL** 4430
7210 MFWD* 7420* 6520 MFWD** 4455 MFWD 3350 MFWD** 3140HL MFWD** 4430 HFWD
7220* 7420 MFWD* 6520SE MFWD**   3350HL** 3640**
7220 MFWD* 7510 MFWD* 6530**   3350HL MFWD** 3640 MFWD**
7230* 7520 MFWD* 6530 MFWD**   3650 MFWD** 4040
7230 MFWD* 7600 6600 MFWD**   4050 4040S MFWD**
7320* 7600 MFWD 6610 MFWD**   4050 MFWD 4040 HFWD
7320 MFWD* 7610 6610SE MFWD**   4250 4240
7330* 7610 MFWD 6620 MFWD**   4250 MFWD 4240S MFWD**
7330 MFWD* 7700 6630**   4450 4240 HFWD
7400* 7700 MFWD 6630 MFWD**   4450 MFWD 4440
7400 MFWD* 7710 6800 MFWD**     4440 HFWD
7405 MFWD* 7710 MFWD 6810 MFWD**
7410* 7800 6820 MFWD**
7410 MFWD* 7800 MFWD 6830**
7420* 7810 6830 MFWD**
7420 MFWD* 7810 MFWD 6910 MFWD**
7510 MFWD*   6920 MFWD**
7520 MFWD*   6930**
7600   6930 MFWD**
MFWD - Mechanical Front Wheel Drive
HFWD - Hydraulic Front Wheel Drive
* North America only
** Export only



OUMX005,00027E9 -19-21JUN07-2/2
