Detaching Loader

causym CAUTION: To help prevent personal injury caused by a falling loader, always detach on a hard, level surface. Loader MUST be equipped with QUIK-PARK™ attachment and a bucket to detach.

NOTE: Parking is shown with a mechanical self-level loader. Procedure is the same for Standard loader.

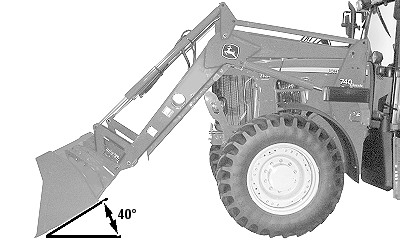

1. Dump bucket 40° below level.

2. Lower bucket to ground, applying slight down pressure. Do not raise tires off ground.

3. Engage parking brake or place transmission in PARK and shut off engine.

W14000
W08668

OUMX005,00027EC -19-21JUN07-1/15

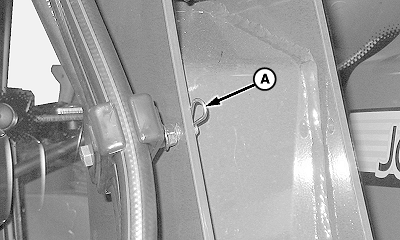

4. Remove spring locking pin (A) and hose clamp with hoses from right-hand mast. Store spring locking pin on end of drilled cap screw.


A-Spring Locking Pin

W08669

OUMX005,00027EC -19-21JUN07-2/15

NOTE: To prevent loader from sinking in soft ground, place boards under parking stands.

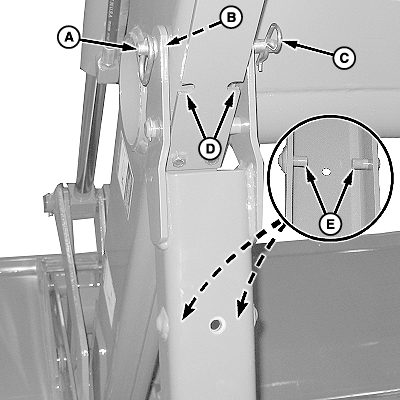

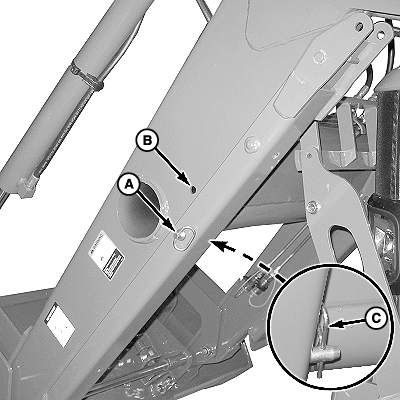

5. Lower parking stands:

a. Remove spring locking pin (C) and pin (A).

b. Slide parking stand down until pins (E) pass through notches (D).

c. Align parking stand with hole (B) and install pin (A) and spring locking pin (C) as shown.


A-Pin
B-Hole
C-Spring Locking Pin
D-Notches
E-Pins

W08670
W08671

OUMX005,00027EC -19-21JUN07-3/15

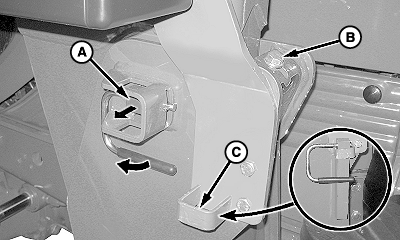

6. Loosen wedge cap screws (B) on back of each tractor frame.

7. Remove pins (A) from both mounting frames and place in storage brackets (C).

8. Start tractor engine.

9. Put transmission in NEUTRAL to allow tractor movement, and release parking brake.


A-Pin
B-Wedge Adjustment Screw
C-Pin Storage Bracket

W08672

OUMX005,00027EC -19-21JUN07-4/15

NOTE: Toolbox and bracket removed for clarity.

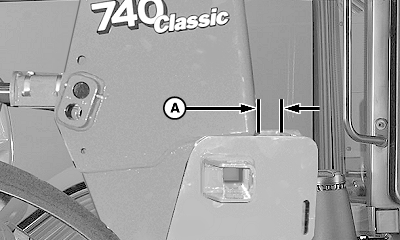

10. Extend lift cylinders until masts move forward 50 mm (2 in.) (A).


A-Distance, 50 mm (2.0 in.)

W08673

OUMX005,00027EC -19-21JUN07-5/15

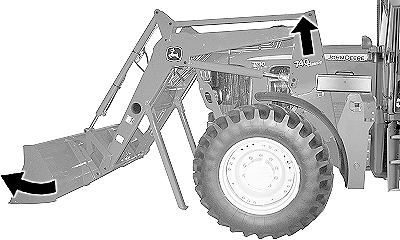

11. Slowly roll back bucket until stands contact ground. Continue to roll back bucket until loader lifts out of mounting frames. Drive ahead as necessary to keep hoses slack.

W08674

OUMX005,00027EC -19-21JUN07-6/15

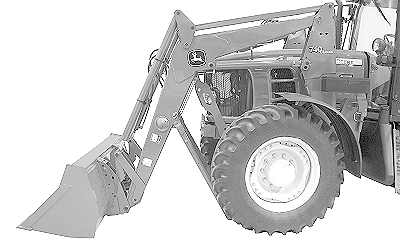

12. Retract lift cylinders completely.

13. Extend bucket cylinders slightly.

W08675

OUMX005,00027EC -19-21JUN07-7/15

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

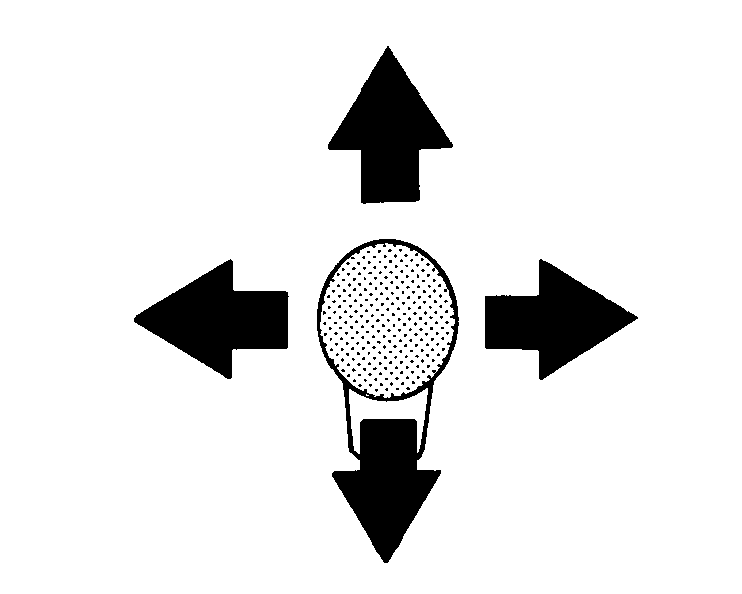

14. Shut off engine and move loader control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

Electrohydraulic valve/third function (attachment, such as grapple):

a. Turn key to ON position. Do not start tractor engine.

b. Press switch (A) several times.

c. Turn key to OFF position.


A-Switch

X9811
W03317
W08200

Early Version

W08201

Later Version

OUMX005,00027EC -19-21JUN07-8/15

30, 40, 50 and 55 Series Tractors with independent control valve: Use following special procedure to relieve hydraulic pressure:

a. With engine running, move lever forward and to right-hand side. Do not place lever in FLOAT or FAST DUMP positions.

b. Hold lever, shut off tractor engine and wait until engine stops before releasing lever.

W11558

OUMX005,00027EC -19-21JUN07-9/15

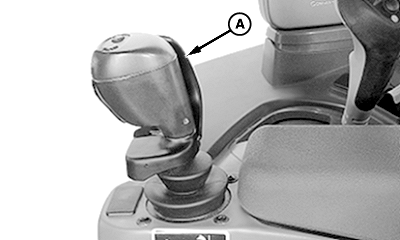

Electronic Control Lever (E-ICV):

a. Turn key to ON position. Do not start tractor engine.

b. Release interlock. (Operator's hand must be inserted to hold switch actuator (A) open.)

c. Move loader control lever back and forth and side-to-side several times.

d. Turn key to OFF position.


A-Interlock Switch Actuator

W08193

OUMX005,00027EC -19-21JUN07-10/15

15. SCV at Rear of Tractor:

a. Disconnect couplers.

b. Place caps on hose ends and plugs in couplers.

W00345

OUMX005,00027EC -19-21JUN07-11/15

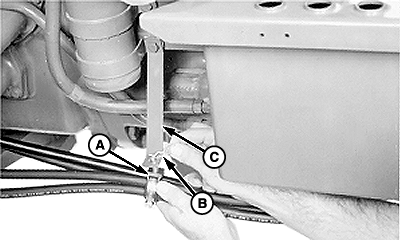

c. Remove spring locking pin (B) and hose clamp with hoses (A) from bracket (C) on tractor frame.

d. Store hoses on loader. Do not lay them on ground.


A-Hose Clamp with Hoses
B-Spring Locking Pin
C-Bracket

W04674

Underside of Tractor

OUMX005,00027EC -19-21JUN07-12/15

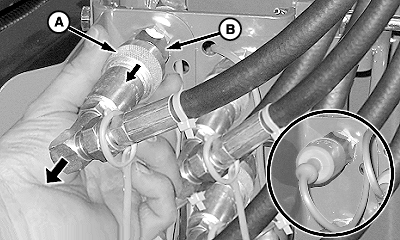

Mid-Mount Couplers:

a. Pull back and hold collar on female coupler (A).

b. Disconnect female coupler from male coupler (B).

c. Release collar on female coupler.

d. Place plug in hose end and cap on male coupler.

e. Repeat for all hydraulic hose connections.

f. Place hoses on lift cylinder. Do not lay on ground.

W08711

6000 and 7000 Series Shown


A-Coupler, Female
B-Coupler, Male

OUMX005,00027EC -19-21JUN07-13/15

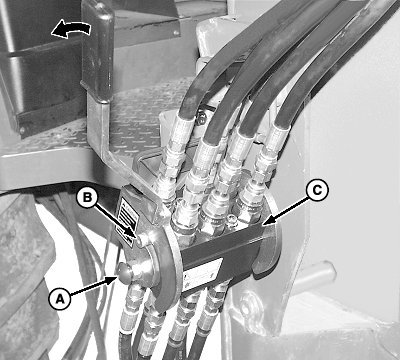

Multi-Coupler:

IMPORTANT: To avoid seal damage, relieve hydraulic pressure before disconnecting multi-coupler. (See your tractor Operator's Manual.)

a. Push red knob (A) IN and rotate lever rearward to disengage pins (B), separating coupler halves.

b. Remove loader coupler half with hoses (C) away from tractor coupler.

c. Store coupler half on loader mast. Do not lay on ground.


A-Red Knob
B-Pin (1 each side)
C-Loader Coupler Half with Hoses

W04639

OUMX005,00027EC -19-21JUN07-14/15

IMPORTANT: Lever (A) must be in the locked (UP) position when loader coupler half with hoses are removed to avoid interference with tractor fender or wheel. Cover (B) must also be lowered to protect connection surface of tractor coupler half.

d. Rotate lever (A) around and forward until a "click" is heard, locking lever in UP position, as shown.

e. Lower cover (B).

16. Start tractor engine.

17. Place transmission in REVERSE and move tractor slowly away from loader.

W05827


A-Lever
B-Cover

OUMX005,00027EC -19-21JUN07-15/15
