Operating Loader with Multi-Function Control Lever

Operate loader from operator's seat only. Remain at controls until operating cycle is complete.

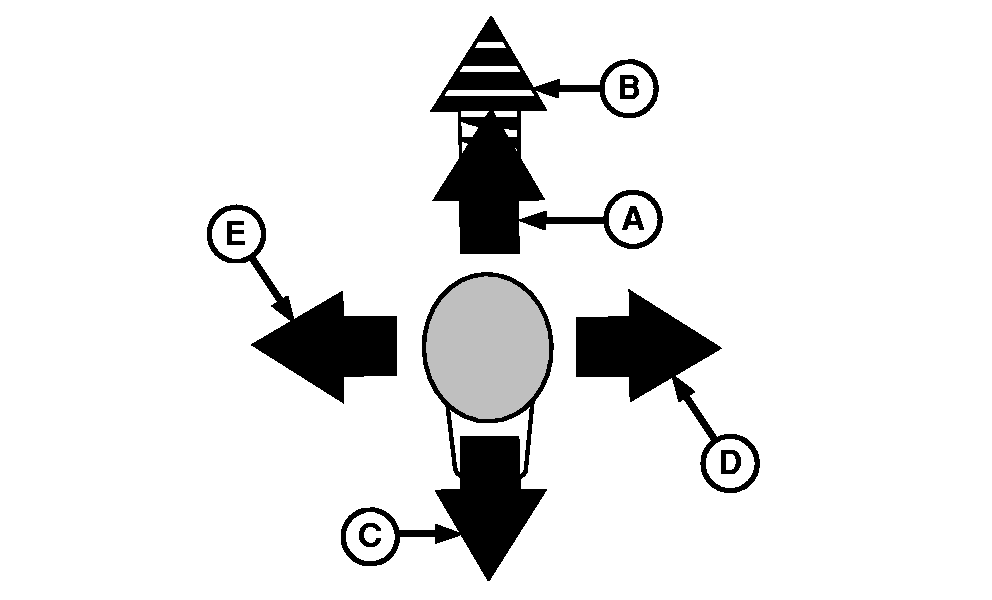

Lever returns to NEUTRAL by itself from all positions except FLOAT. Pull lever back to release from FLOAT.

OUMX005,00027F8 -19-10FEB07-1/4

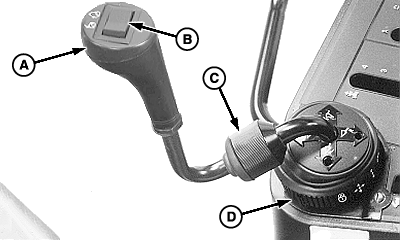

Lever (A) can be locked in neutral to prevent unintentional movement.

Locking collar (C) can be used to secure the lever in one of two positions.

If the lever is not required, move locking ring (D) to position (E) and slacken off locking collar (C). Swing the lever to the right and tighten locking collar (C) again. Locking ring (D) can be used to lock out various lever movements.

An attachment, such as a grapple, may be operated by optional switch (B).

A-Multi-Function Control Lever
B-Switch, Third-Function (Optional)
C-Locking Collar
D-Locking Ring

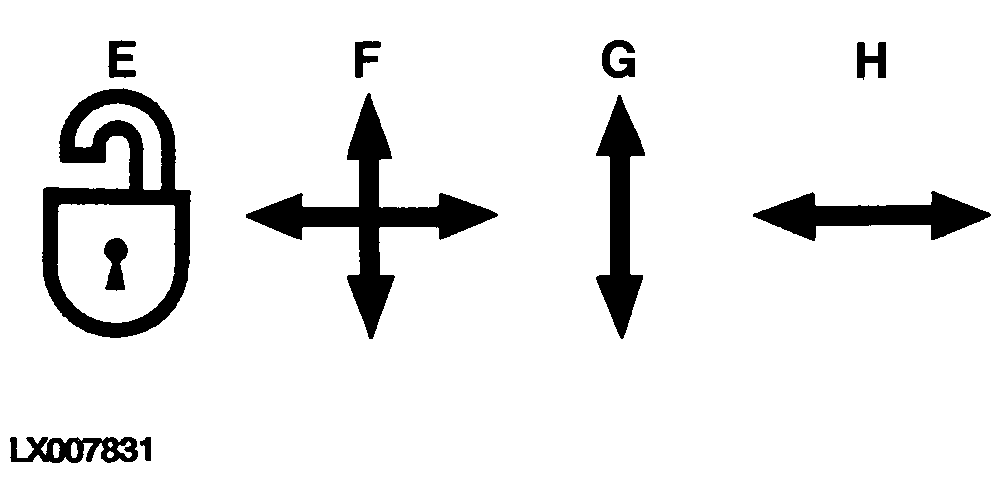

E-Lever Locked
F-Lever Not Locked
G-Lever Locked to Left and Right
H-Lever Locked to Front and Rear

OUMX005,00027F8 -19-10FEB07-2/4

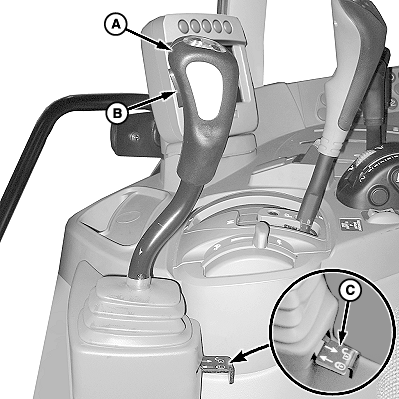

Slide control (C) locks the lever (A) to prevent unintentional movement.

An attachment, such as a grapple, may be operated by optional switch (B).

Refer to your tractor Operator's Manual for additional information.

A-Multi-Function Control Lever
B-Switch, Third-Function (Optional)
C-Transport Lock Slide Control

OUMX005,00027F8 -19-10FEB07-3/4

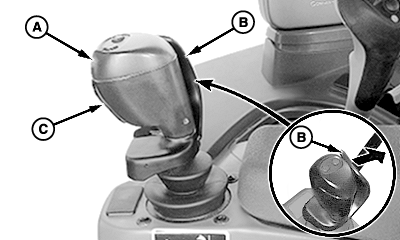

Interlock switch actuator (B) helps prevent accidental actuation of the multi-function control lever (A). The control lever can operate only when the actuator is open. (Operator's hand must be inserted to hold switch actuator (B) open.)

An attachment, such as a grapple, may be operated by rocker switch (C).

Refer to your tractor Operator's Manual for additional information.

A-Multi-Function Control Lever
B-Interlock Switch Actuator
C-Rocker Switch
