Operating Loader with Selective Control Valve (SCV) Levers

Refer to your tractor Operator's Manual.


A-Retract
B-Extend
C-Neutral Position
D-Float Position

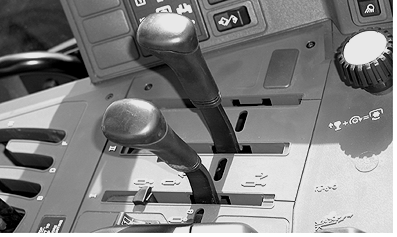

RXA0062315

Mechanical Levers

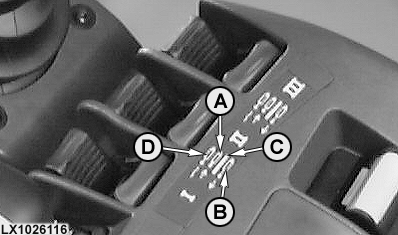

LX1026116

Electronic (CommandArm)

OUMX005,00027F9 -19-10FEB07-1/1
