Detaching Bucket or Attachment
If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A. 1. If equipped with hydraulic operated attachment (such as grapple): Disconnect hydraulic hoses as follows: a. Turn key to ON position. Do not start tractor engine. b. Press switch (A) several times. c. Turn key to OFF position.
|
|
CAUTION:
Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.
OUO6038,0001823 -19-10FEB07-1/5 |
|

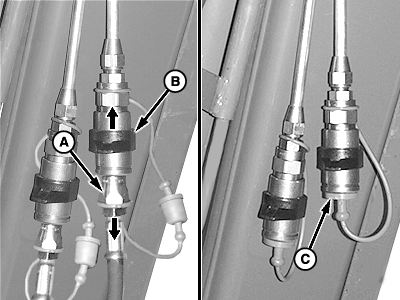

d. Push and hold collar (B) on female coupler. e. Disconnect male coupler (A). f. Release collar on female coupler. g. Place cap on hose end and insert plug (C) into female coupler. h. Repeat for remaining hydraulic hose connection.
|
|
OUO6038,0001823 -19-10FEB07-2/5 |
|
2.
QUIK-CHANGE™ Latch Plates:

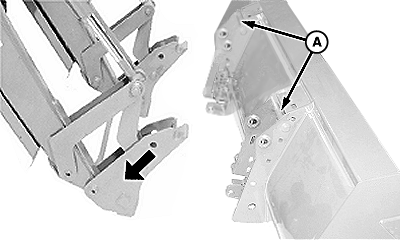

a. Level the attachment and lower until approximately 400 mm (16 in.) off ground. b. Place transmission in PARK and shut off engine c. At each side of bucket/attachment: Lift pins (A) and pull toward outside to lock in raised position.
|
|
OUO6038,0001823 -19-10FEB07-3/5 |
|

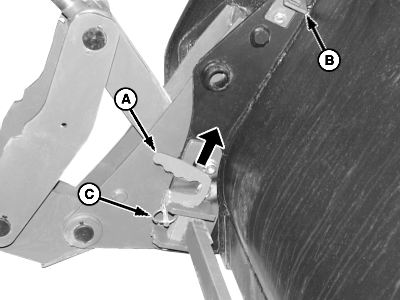

Heavy Duty Latch Plates: At each side of bucket/attachment, remove quick-lock pin (C) and pin (A). Place pin in storage bracket (B).
|
|
OUO6038,0001823 -19-10FEB07-4/5 |
|
3.
Start tractor engine and slowly extend bucket cylinders until holder brackets clear pockets.

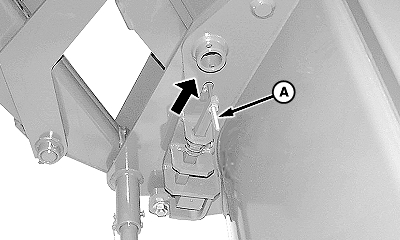

4. Lower loader to clear pins (A).
|
|
OUO6038,0001823 -19-10FEB07-5/5 |
