Attaching Bucket or Attachment

causym CAUTION: DO NOT operate loader without making sure latches are engaged. Failure to engage retainer could result in attachment detaching from loader causing serious bodily injury or death.

NOTE: QUIK-CHANGE™ Latch Plates: Pins/handles on bucket or attachment DO NOT need to be in the UP position.

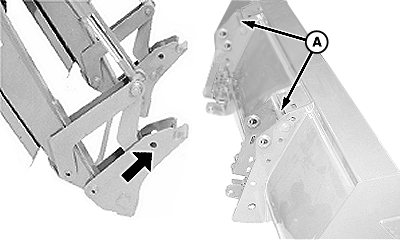

1. Extend bucket cylinders to angle holder brackets forward.

2. Align tops of holder brackets with pins (A).

3. Raise loader until brackets engage pins, then roll back bucket/attachment quickly.

W05771


A-Pins

OUO6038,0001833 -19-12JUN07-1/5

causym CAUTION: To avoid personal injury, make sure bucket/attachment is properly secured to carrier.

4. QUIK-CHANGE™ Latch Plates: Raise loader high enough to check that pins (A) on both sides have fully dropped.

If latch mechanism is not working properly, clean latch parts and check adjustment. (See ADJUSTING QUIK-CHANGE™ LATCH PLATES in Service section.)


A-Pin (1 each side)

W05772

OUO6038,0001833 -19-12JUN07-2/5

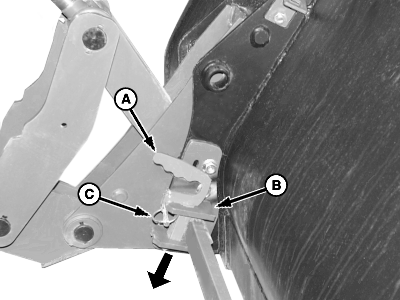

Heavy Duty Latch Plates; Place pin (A) through bracket (B) and fasten with quick-lock pin (C).

5. Lower loader to the ground and turn off tractor engine.


A-Pin
B-Bracket
C-Quick-Lock Pin

W06765

OUO6038,0001833 -19-12JUN07-3/5

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

Help prevent personal injury caused by unexpected loader movement. Hose connections must be correct or attachment will not respond as expected when control lever is moved.

6. If equipped with hydraulic operated attachment (such as grapple): Connect hydraulic hoses as follows:

a. Turn key to ON position. Do not start tractor engine.

b. Press switch (A) several times.

c. Turn key to OFF position.


A-Switch

X9811
W08200

Mechanical EH-Early Version

W08201

Mechanical EH-Later Version

W08202

Electronic

OUO6038,0001833 -19-12JUN07-4/5

IMPORTANT: Before connecting coupler halves make sure that fittings are free of dirt and debris.

NOTE: Hose connections are identified by matching the color-coded cap on the hose end with the same color-coded plug on the hydraulic lines:

  • (B) Attachment Cylinder-Head End (Orange)

  • (C) Attachment Cylinder-Rod End (Green)

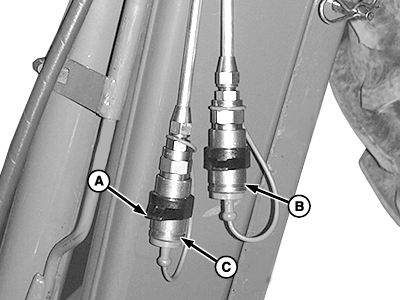

d. Push and hold collar (A) on female coupler.

e. Insert hydraulic hose with male end into coupler.

f. Release collar on female coupler.

g. Connect color-coded cap and plug together.

h. Repeat for remaining hydraulic hose connection.

W04723


A-Collar
B-Attachment Cylinder-Head End (Orange)
C-Attachment Cylinder-Rod End (Green)

OUO6038,0001833 -19-12JUN07-5/5
