Leveling Bucket with Bucket Level Indicator (If Equipped)

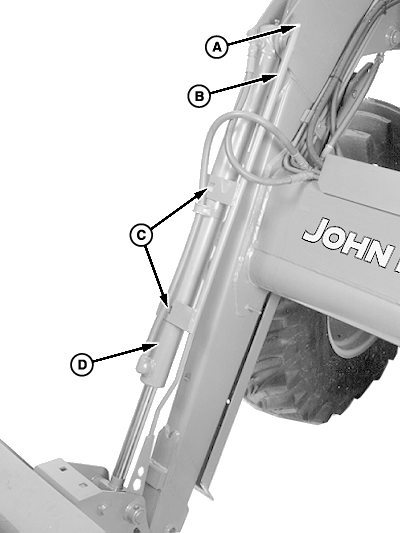

Bucket Level Indicator allows you to see when the bucket or other attachment is level. Bucket/attachment should be level when top of rod (A) is flush with tube (B).

NOTE: Indicator position for a bucket will not be the same for an attachment.

When using level indicator for an attachment other than a bucket: Level the attachment, loosen clamps (C), move tube (B) up or down bucket cylinder (D), and tighten clamps.


A-Level Indicator Rod
B-Tube
C-Clamps
D-Bucket Cylinder

W05766

OUO6038,000184A -19-05FEB07-1/1
