Adjusting Front Tread Settings-2-Wheel Drive and HFWD Tractors

Adjust distance from tire center to tire center (A) to approximately 1800 mm (71 in.). Wider spacings can be used. Do not exceed maximum width recommended for loaders in tractor Operator's Manual. See tractor Operator's Manual to make adjustments.

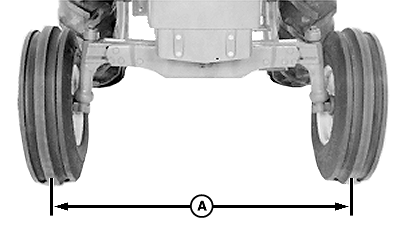

A-Tire Center Distance

OUO6077,00016E4 -19-24JUL03-1/1
