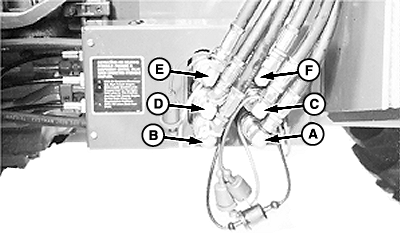

Identifying Hose Connections-Loader to Mid-Mount Valve (30, 40, 50 and 55 Series Tractors)

NOTE: Connections (A-D) are the same for two-spool valve. Three-spool shown.

Key Tie Band/Plug/Cap Color Hydraulic Function
A Yellow Bucket Cylinder-Head End
B Black Bucket Cylinder-Rod End
C Blue Lift Cylinder-Head End
D Red Lift Cylinder-Rod End
E Orange Attachment Cylinder-Head End
F Green Attachment Cylinder-Rod End


W08706
W00524

OUO6077,00016EC -19-20JUN07-1/1
