Checking Lift Cylinder Position

There are two lift cylinder positions:

• 6000 and 7000 Series Tractors: Hole (A)
• 30, 40, 50 and 55 Series Tractors: Hole (B)

CAUTION: 6000 and 7000 Series Tractors have higher hydraulic operating pressures. Moving pin to position (B) will increase lift capacity of loader beyond the acceptable limit.

30, 40, 50 and 55 Series Tractors must operate with pin in position (B).

Excess lift capacity could result in tractor instability causing tractor rollover and personal injury or death.

NOTE: Loader is shipped with cylinder pin in position (A).

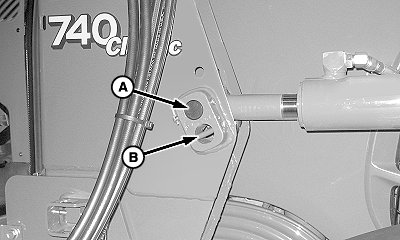

A-Hole
B-Hole
