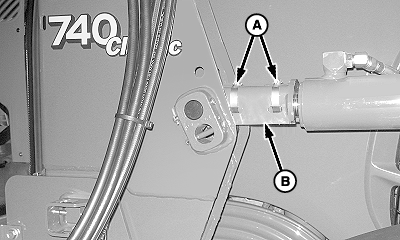

Installing Lift Cylinder Stops6000 and 7000 Series Tractors: Lift cylinder stops are required if tractor is equipped with one of the three largest approved front tires. Tractor with front hitch or front PTO: Lift cylinder stop (B) is required on each cylinder to decrease excess digging depth and improve tire clearance. Lift cylinder stops may also be used for any other combinations where more clearance between fender and loader is desired. Stops are installed using two clamps (A). |
|
OUO6077,00016EF -19-20JUN07-1/1 |
