Adjusting Front Tread Settings/Steering Stops-30, 40, 50, 55 Series MFWD Row Crop Tractors
Adjust distance from tire center to tire center (A) to one of the following minimum settings:
Tractor With Fenders - Specification
|
1990 mm (78 in.) Minimum Tread Setting
-Steering Stop Setting
|
50°
|
|
1830 mm (72 in.) Minimum Tread Setting
-Steering Stop Setting
|
42°
|
|
Tractor With FendersTractor Without Fenders - Specification
|
1700 mm (67 in.) Minimum Tread Setting
-Tire Size
|
13.6-28
|
|
Tire Size
|
14.9-26
|
|
1830 mm (72 in.) Minimum Tread Setting
-Tire Size
|
14.9-28
|
|
Tire Size
|
16.9-26
|
|
Tire Size
|
19.9-26
|
-
Settings are approximate.
-
Wider settings may be used.
-
See tractor Operator's Manual to make adjustments.
|

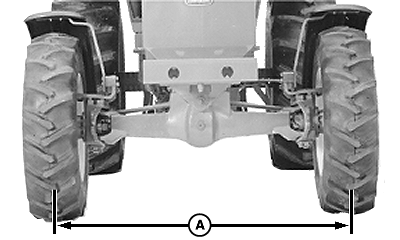

A-Tire Center Distance
|
