Attaching Loader

1. Center tractor between loader masts.

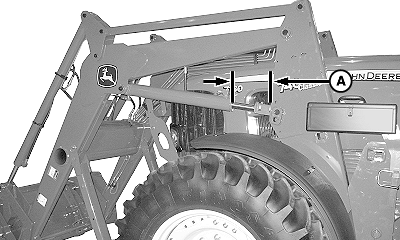

2. Stop tractor with backs of loader masts approximately 150 mm (6 in.) (A) in front of mounting frames.

3. Engage parking brake or place transmission in PARK and shut off engine.

A-Distance, 150 mm (6 in.)

OUO6077,00016F3 -19-21JUN07-1/14

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

4. Shut off engine and move loader control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

Electrohydraulic valve/third function (attachment, such as grapple):

a. Turn key to ON position. Do not start tractor engine.

b. Press switch (A) several times.

c. Turn key to OFF position.

A-Switch

Early Version

W08201

Later Version

OUO6077,00016F3 -19-21JUN07-2/14

30, 40, 50 and 55 Series Tractors with independent control valve: Use following special procedure to relieve hydraulic pressure:

a. With engine running, move lever forward and to right-hand side. Do not place lever in FLOAT or FAST DUMP positions.

b. Hold lever, shut off tractor engine and wait until engine stops before releasing lever.

OUO6077,00016F3 -19-21JUN07-3/14

Electronic Control Lever (E-ICV):

a. Turn key to ON position. Do not start tractor engine.

b. Release interlock. (Operator's hand must be inserted to hold switch actuator (A) open.)

c. Move loader control lever back and forth and side-to-side several times.

d. Turn key to OFF position.

A-Interlock Switch Actuator

OUO6077,00016F3 -19-21JUN07-4/14

causym CAUTION: Help prevent personal injury caused by unexpected loader movement. Hose connections must be correct or loader will not respond as expected when control lever is moved.

IMPORTANT: Before connecting coupler halves make sure that fittings are free of dirt and debris.

NOTE: Hose connections at mid-mount bracket are identified by matching the color-coded cap on the hose end with the same color-coded plug on the mid-mount coupler. (If caps/plugs are missing, see IDENTIFYING HOSE CONNECTIONS in the Service section.)

5. SCV at Rear of Tractor: Connect hydraulics using color-coded dust caps/plugs, identification tags or marks to match mating couplers.

OUO6077,00016F3 -19-21JUN07-5/14

Mid-Mount Couplers:

a. Remove caps from male couplers and plugs from female couplers.

b. Pull back and hold collar (A) on female coupler.

c. Connect female coupler to male coupler (B).

d. Release collar on female coupler.

e. Repeat for all hydraulic hose connections.

f. Connect color-coded caps and plugs together to keep out dirt and debris.

6000 and 7000 Series Tractors Shown

OUO6077,00016F3 -19-21JUN07-6/14

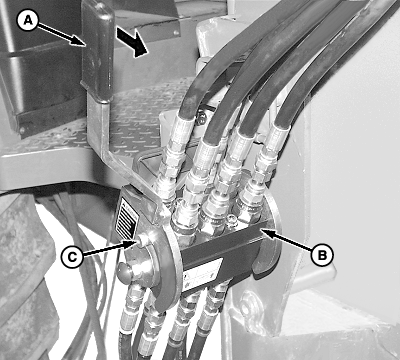

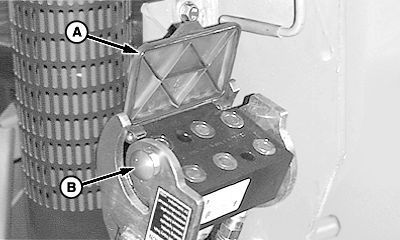

Multi-Coupler:

a. Raise cover (A).

b. Push red knob (B) IN and rotate lever rearward and down, as shown.

A-Cover
B-Red Knob

OUO6077,00016F3 -19-21JUN07-7/14

IMPORTANT: Multi-coupler mating halves must align properly or damage to couplers can occur.

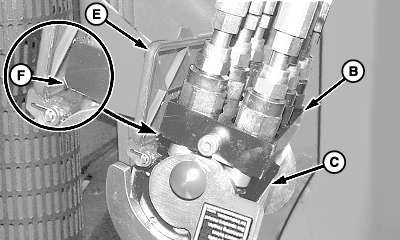

c. Place loader coupler half (B), with chamfered edge (F) toward cover (E), onto tractor coupler. Make sure locating pins (A) on loader coupler fit into corresponding holes (D) in tractor coupler (C).

A-Locating Pins
B-Loader Coupler Half
C-Tractor Coupler Half
D-Holes
E-Cover
F-Chamfered Edge

OUO6077,00016F3 -19-21JUN07-8/14

d. Rotate lever (A) to engage pins (C) on loader coupler half (B) until a "click" is heard, locking halves together.

A-Lever
B-Loader Coupler Half
C-Pin (1 each side)

OUO6077,00016F3 -19-21JUN07-9/14

6. Start tractor engine.

7. Place transmission in NEUTRAL , to allow tractor movement, and release parking brake.

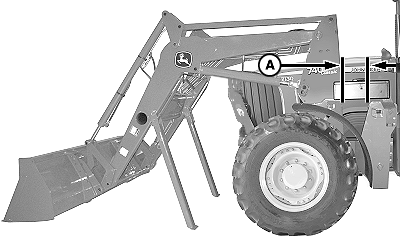

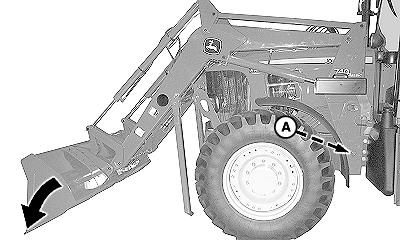

8. Extend lift cylinders approximately 150 mm (6 in.) (A).

A-Distance, 150 mm (6 in.)

OUO6077,00016F3 -19-21JUN07-10/14

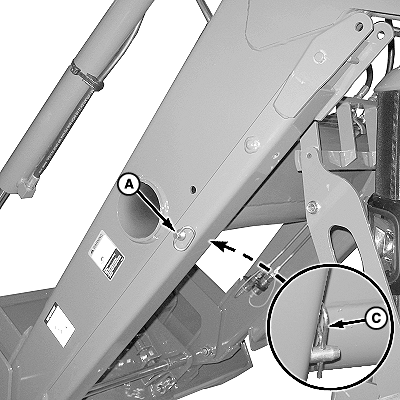

9. Slowly dump bucket, until bottoms of masts fit over pins (A). Dump bucket until stands are approximately 150 mm (6 in.) off the ground.

A-Pin (1 each side)

OUO6077,00016F3 -19-21JUN07-11/14

10. Slowly retract lift cylinders until rear of masts (B) contact backs of mounting frames (C).

11. Engage parking brake and/or place transmission in PARK and shut off engine.

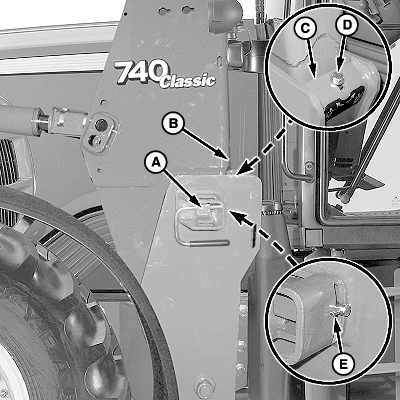

12. Install pins (A) on both sides of loader. If pin will not go in, extend lift cylinders slightly and turn wedge adjustment screw (D) to raise wedge as high as possible. (See ADJUSTING WEDGE MOUNTING FRAME-TO-MAST in Service section.) Retract lift cylinder and install pin.

13. Rotate pin handle downward and make sure spring pin (E) is outside of pin holder, as shown.

A-Pin (1 each side)
B-Mast (1 each side)
C-Mounting Frame (1 each side)
D-Adjustment Screw (1 each side)
E-Spring Pin (1 each side)

OUO6077,00016F3 -19-21JUN07-12/14

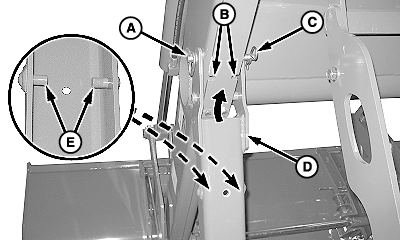

14. Store parking stands (D):

a. Remove spring locking pin (C) and pin (A).

b. Fit pins (E) through notches (B) and slide parking stand upward.

c. Install pin (A) through stand and mast and fasten with spring locking pin (C) as shown.

A-Pin (1 each side)
B-Notches (2 each side)
C-Spring Locking Pin (1 each side)
D-Parking Stand (1 each side)
E-Pins (2 each side)

OUO6077,00016F3 -19-21JUN07-13/14

15. Attach hoses to loader using spring locking pin (A). For hoses going to tractor SCV, attach hoses to tractor using original clamps or removable tie bands.

16. Start tractor engine and check loader operation.

A-Spring Locking Pin
