Every 10 Hours

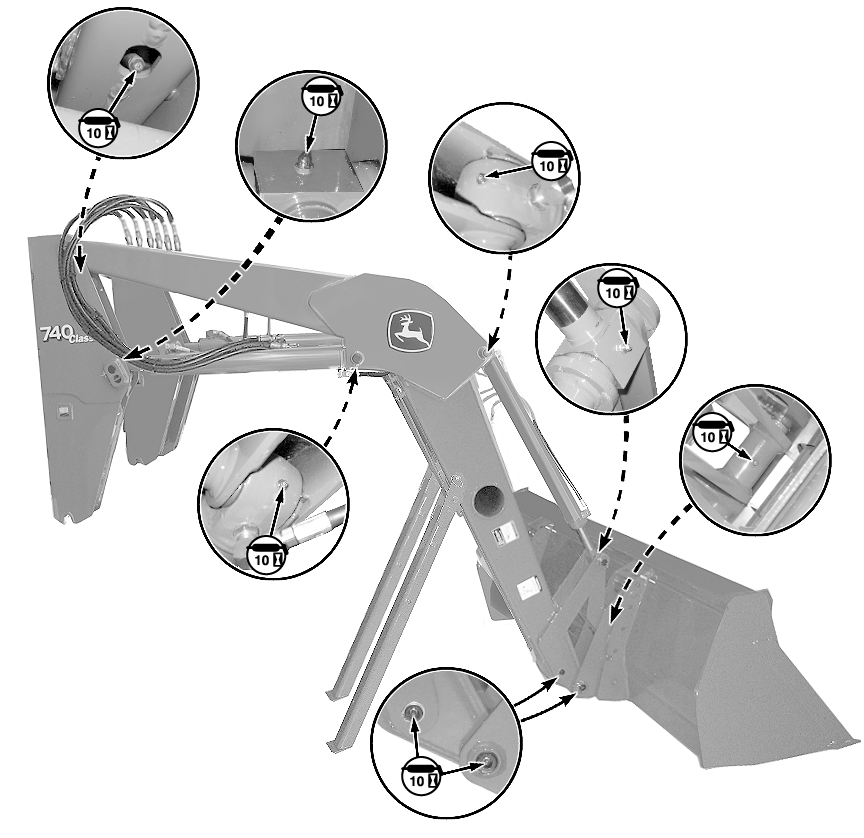

W08692
Standard Loader

Lubricate sixteen fittings, eight on each side of loader.

OUO6077,00016FC -19-14JUN07-1/3

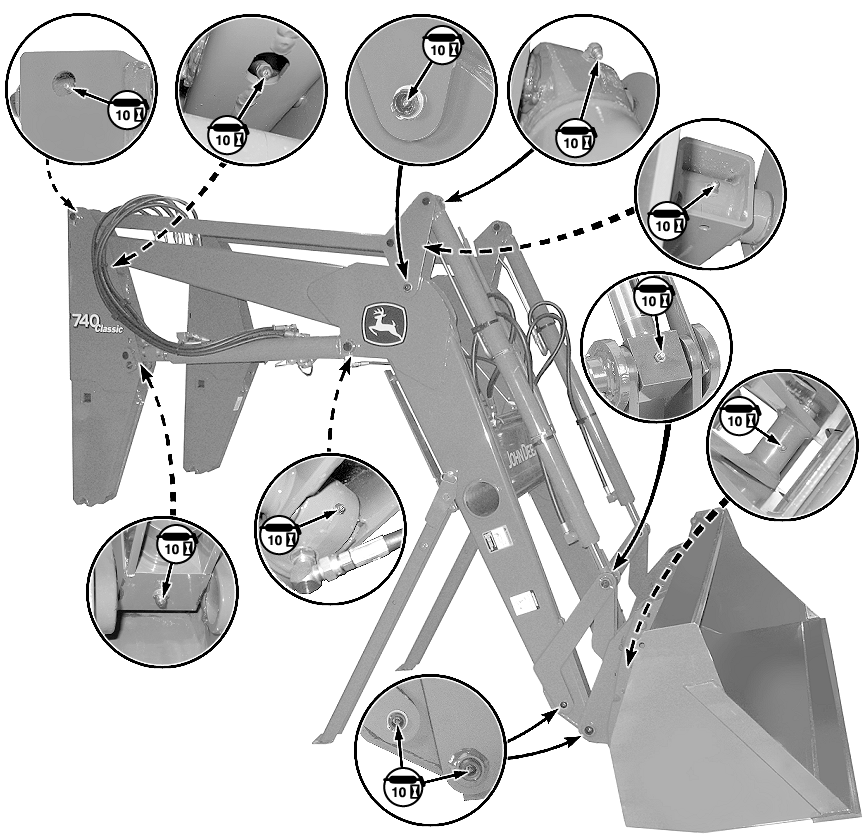

W08691
Mechanical Self-Level Loader

Lubricate twenty-two fittings, eleven on each side of loader.

OUO6077,00016FC -19-14JUN07-2/3

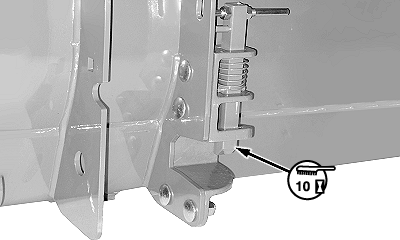

Bucket/Attachment QUIK-CHANGE™ Latch Pins

Clean and lubricate latch pins on both sides of bucket/attachment. Make sure pins engage freely.

W08099

OUO6077,00016FC -19-14JUN07-3/3
