Every 50 Hours

Tighten Mounting Frame Hardware-6000 and 7000 Series Row Crop Tractors

IMPORTANT: Help prevent damage to tractor or loader caused by operating with loose mounting hardware. Tighten loader frame hardware after first 10 hours of operation and again after every 50 hours.

Tighten hardware to specification.

Specification

Mounting Frame Hardware -Torque 620 N·m (457 lb-ft)

NOTE: Some cap screws have weld nuts on the inside of tractor frame.

W01201

OUO6077,00016FD -19-14JUN07-1/2

Tighten Mounting Frame Hardware-30, 40, 50 and 55 Series Row Crop Tractors

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader frame hardware after the first 10 hours of operation and again after every 50 hours.

Tighten mounting frame hardware:

Mounting Frame Hardware - Specification

Front Bracket-to-Tractor Hardware (A) -Torque 407 N·m (300 lb-ft)
Mounting Frame-to-Front Bracket Hardware (B) -Torque 235 N·m (173 lb-ft)
Cross Tie Hardware (C) -Torque 235 N·m (173 lb-ft)
Mounting Frame-to-Side Frame Hardware (D) -Torque 235 N·m (173 lb-ft)


A-Hardware
B-Hardware
C-Hardware
D-Hardware

W00758

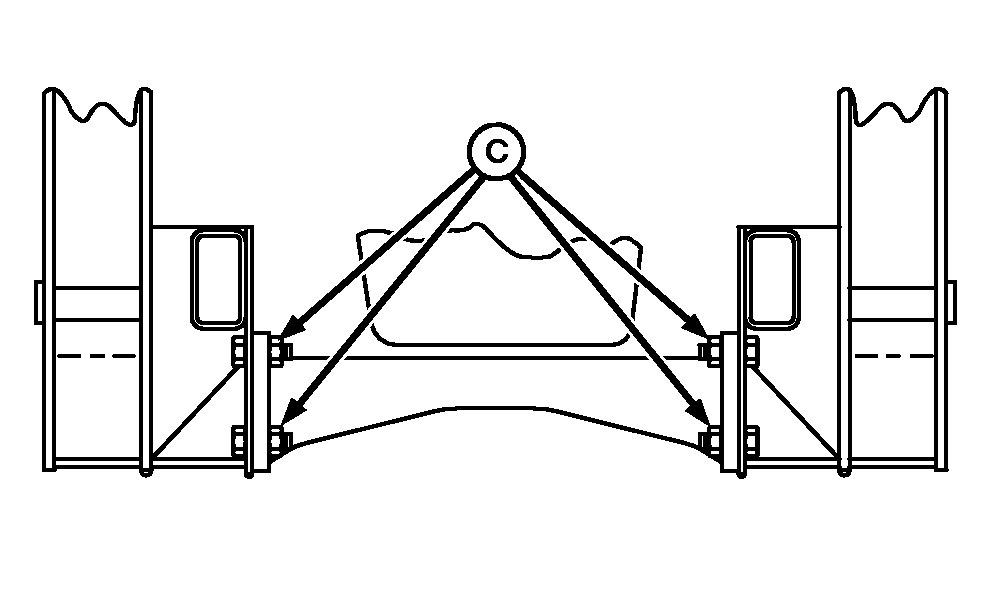

Front Cross Tie

W05640

Tie Bar

W05669

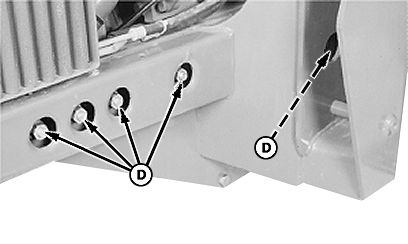

Front Side Frame

W05670

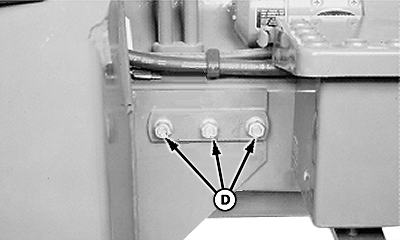

Rear Side Frame
