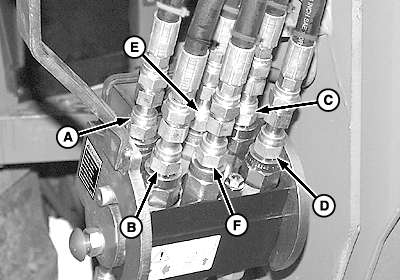

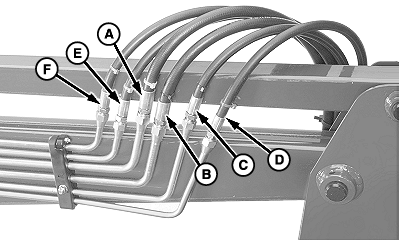

Identifying Hose Connections-Loader to Multi-Coupler (6000 and 7000 Series Tractors)
Key
Hose Tie Band Color
Hydraulic Function
A
Yellow
Bucket Cylinder-Head End
B
Black
Bucket Cylinder-Rod End
C
Blue
Lift Cylinder-Head End
D
Red
Lift Cylinder-Rod End
E
Orange
Attachment Cylinder-Head End
F
Green
Attachment Cylinder-Rod End
OUO6077,00017A1 -19-20JUN07-1/1
