Identifying Hose Connections-Loader to Tractor Selective Control Valve1

NOTE: Coupler location varies with tractor model. For all coupler locations, make connections so that bucket operation is controlled by the right-hand SCV lever on tractors with two SCVs (center lever on tractors with three SCVs) and raise/lower operation is controlled by the left-hand lever.

Connection Hydraulic Oil
Circuit on Loader		 SCV
Operating Lever
A Bucket Cylinder Head End Right-hand or center
B Bucket Cylinder Rod End Right-hand or center
C Lift Cylinder Head End Left-hand
D Lift Cylinder Rod End Left-hand



Grapple hoses are not shown. A third SCV is required to operate a grapple with this set up.

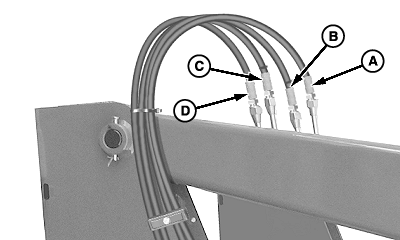

W08707
W01204

7X00, 7X10, 7X20 Series, 6605, 6615, 6715 and 7405 Tractor

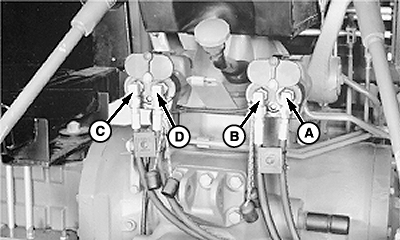

W12160

30, 40, 50 and 55 Series Tractor

1North America only.

WX,740OM,23 -19-20JUN07-1/1
