Identifying Hose Connections-Loader to Mid-Mount Couplers (6000 and 7000 Series Tractors)

Key Tie Band/Plug/Cap Color Hydraulic Function
A Yellow Bucket Cylinder-Head End
B Black Bucket Cylinder-Rod End
C Blue Lift Cylinder-Head End
D Red Lift Cylinder-Rod End
E Orange Attachment Cylinder-Head End
F Green Attachment Cylinder-Rod End

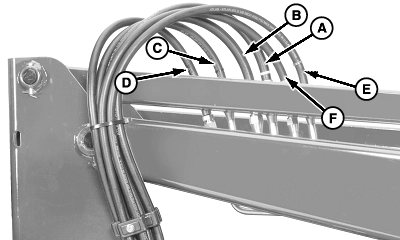

W08706

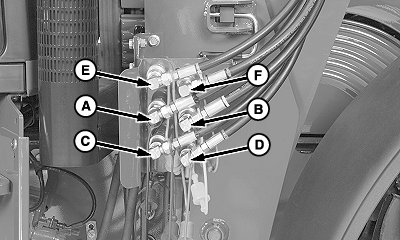

W08709

WX,740OM,24 -19-20JUN07-1/1
