MFWD Tire/Fender Interference with Loader

Depending on tire size, tire may rub on boom/parking stand (A). This should only occur when tractor front wheels are turned to maximum steering angle, front axle is fully oscillated and loader fully lowered.

IMPORTANT: Fenders will be damaged from contact with loader frames if tread setting, steering stops and fender positions are left in factory shipping position. Make adjustments before installing loader frames.

The fender may deflect against lift cylinder (B), knee plate (C) and/or mounting frame (D). During normal operation, the frequency of contact should be low. The amount of interference should cause no permanent damage to loader, tires or fenders.

See tractor Operator's Manual to make adjustments.

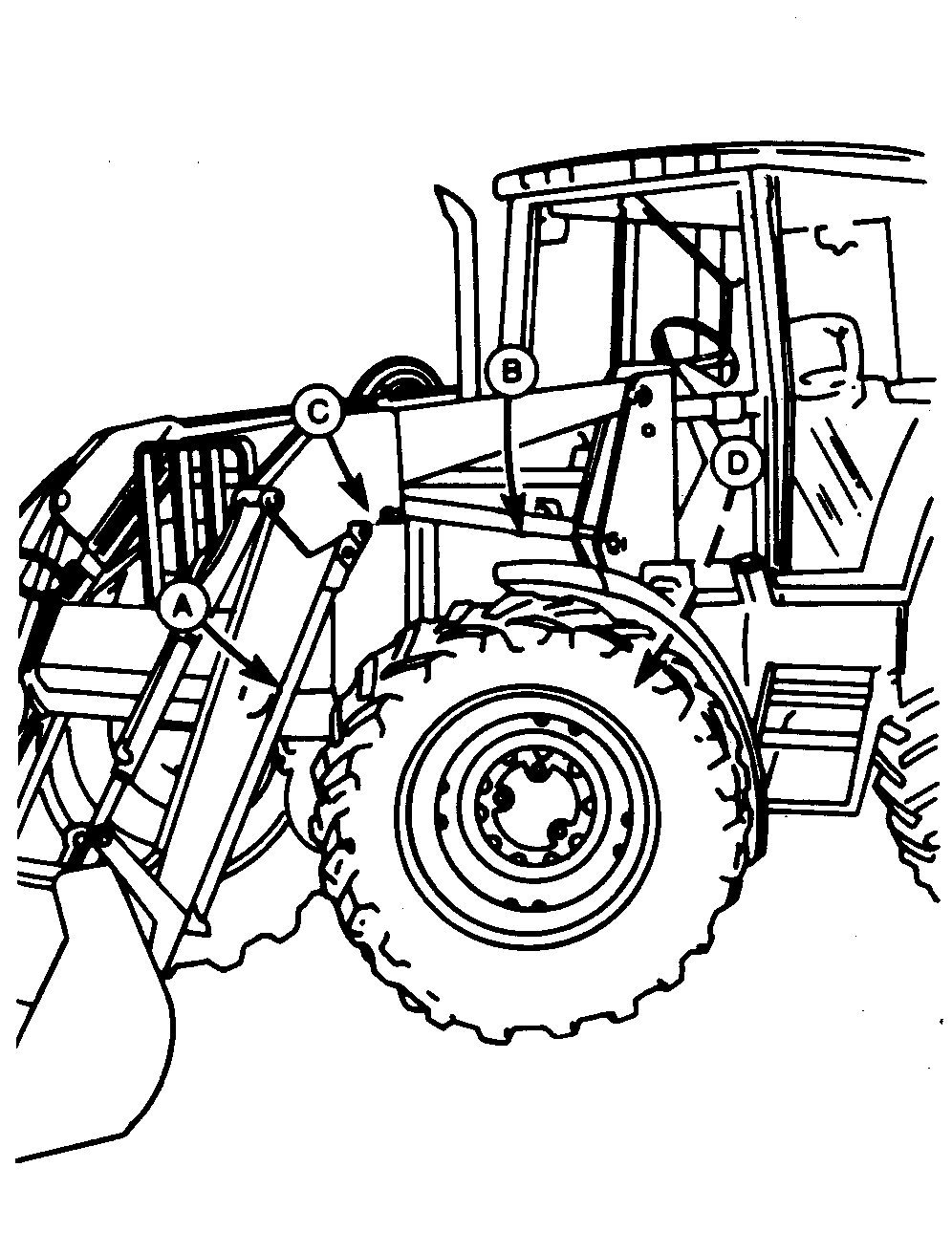

A-Parking Stand
B-Lift Cylinder
C-Knee Plate
D-Mounting Frame
