Accessing Front of Tractor (4000 and 4000 TEN Series)

1. Remove spring locking pins (A) from pins in each side of the hood guard.

2. Remove drilled pins and swing hood guard down for access to front of tractor.

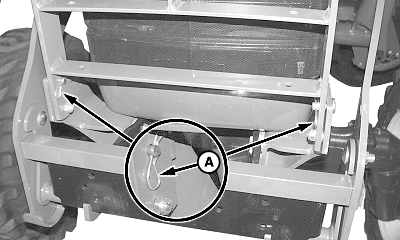

A-Spring Locking Pin (1 each side)

W06654

OUO6038,0001A98 -19-09MAR04-1/1
