Identifying Hose Connections-522 Loader Operated with Single Lever ICV
 CAUTION:
Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to independent control valve as shown.
| Key |
Dust Cover Color |
Hydraulic Function |
| A |
Yellow |
Bucket Cylinder-Head End |
| B |
Black |
Bucket Cylinder-Rod End |
| C |
Blue |
Lift Cylinder-Head End |
| D |
Red |
Lift Cylinder-Rod End |

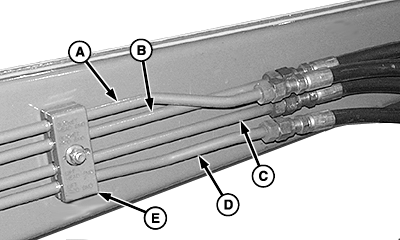

Hydraulic line use is also described on face of clamp (E).

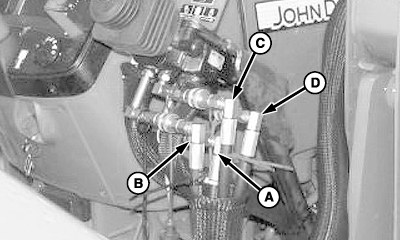

A-Bucket Cylinder Head End
B-Bucket Cylinder Rod End
C-Lift Cylinder Head End
D-Lift Cylinder Rod End
E-Clamp
|
