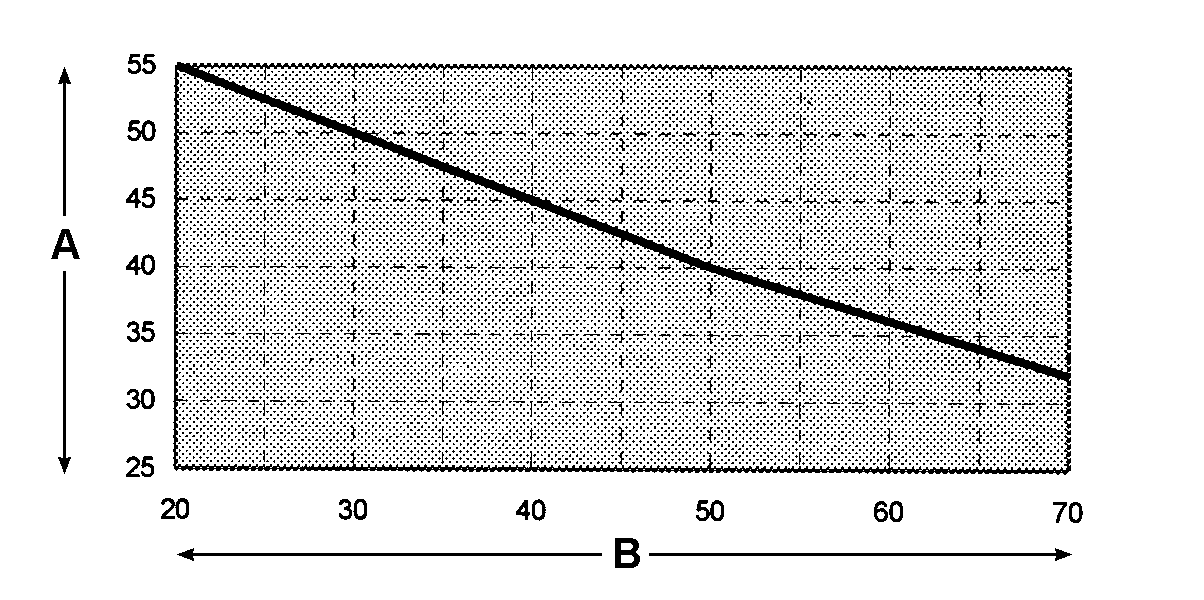

Turn Angle Versus Steering Stop Length Chart (5000 Series Tractors)

W02869

A-Turn Angle in Degrees

B-Steering Stop Length in Millimeters
