Adding Ballast To Hitch-All Tractors Except 5000N Series

Three ballast box options are available as attachments:

  • Small box without extension.

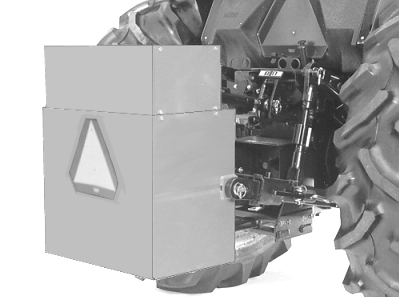

  • Small box with extension (shown).
  • Large box.

Use sand, concrete or tractor weights in box to meet ballast requirements.

A 3-point hitch implement may be used as ballast, but it must meet weight required.

The following chart shows approximate total weights of the box with ballast materials. Use it as a guideline to add ballast to your tractor hitch.

W04144

Weight Sand (Dry) Concrete
SMALL BALLAST BOX WITHOUT EXTENSION
Material 217.5 kg (480 lb) 315.5 kg (695 lb)
Empty Box 58.5 kg (129 lb) 58.5 kg (129 lb)
Total 276 kg (608 lb) 374 kg (824 lb)
SMALL BALLAST BOX WITH EXTENSION
Material 306.5 kg (676 lb) 443.5 kg (977 lb)
Empty box 72.5 kg (160 lb) 72.5 kg (160 lb)
Total 379 kg (835 lb) 516 kg (1137 lb)
LARGE BALLAST BOX
Material 450 kg (990 lb) 700 kg (1540 lb)
Empty box 170 kg (375 lb) 170 kg (375 lb)
Total 620 kg (1365 lb) 870 kg (1915 lb)



OUO6038,0000186 -19-21JUL04-1/1
