Adjust Lever Stops For SCV Operated Loader-20, 30, 40, 50, and 55 Series Tractor

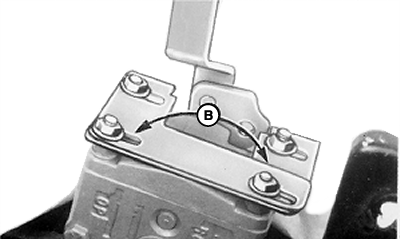

NOTE: Spool type selective control valves do not have detent positions. 1. Position front and rear stops (A) on right-hand bucket control lever to lock out detent.2. Position rear stop (B) on left-hand lift control lever to lock out detent. Position front stop to allow lever to move into detent for loader FLOAT. 3. Adjust selective control valves for fastest rate of operation. (See your tractor Operator's Manual to make adjustments.) |
|
CAUTION:
Help prevent personal injury or death caused by objects falling on the operator. Poppet type selective control valves have an automatic cylinder extend position (detent) that must be locked out for loader operation. Unintentional movement of the control lever to the detent position may cause the loader to raise to full height unexpectedly and the load to fall back on the operator.
OUO6038,0000188 -19-30NOV00-1/1 |
