Mounting Frame Hardware-5500 Tractors (Except Narrow Tractors Without Cabs)

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

Mounting Frame Hardware
Location Description Size Torque Specification
A Cap Screw
Flat Washer		 M16 x 50
17 x 34 x 4 mm		 275 N·m
(200 lb-ft)
B Cap Screw
Flat Washer		 M20 x 65
21 x 42 x 5 mm		 530 N·m
(400 lb-ft)
C Cap Screw
Flat Washer
Flange Nut		 M20 x 65
21 x 42 x 5 mm
M20		 530 N·m
(400 lb-ft)




A-Cap Screws, M16 x 50
B-Cap Screw, M20 x 65
C-Cap Screw, M20 x 65

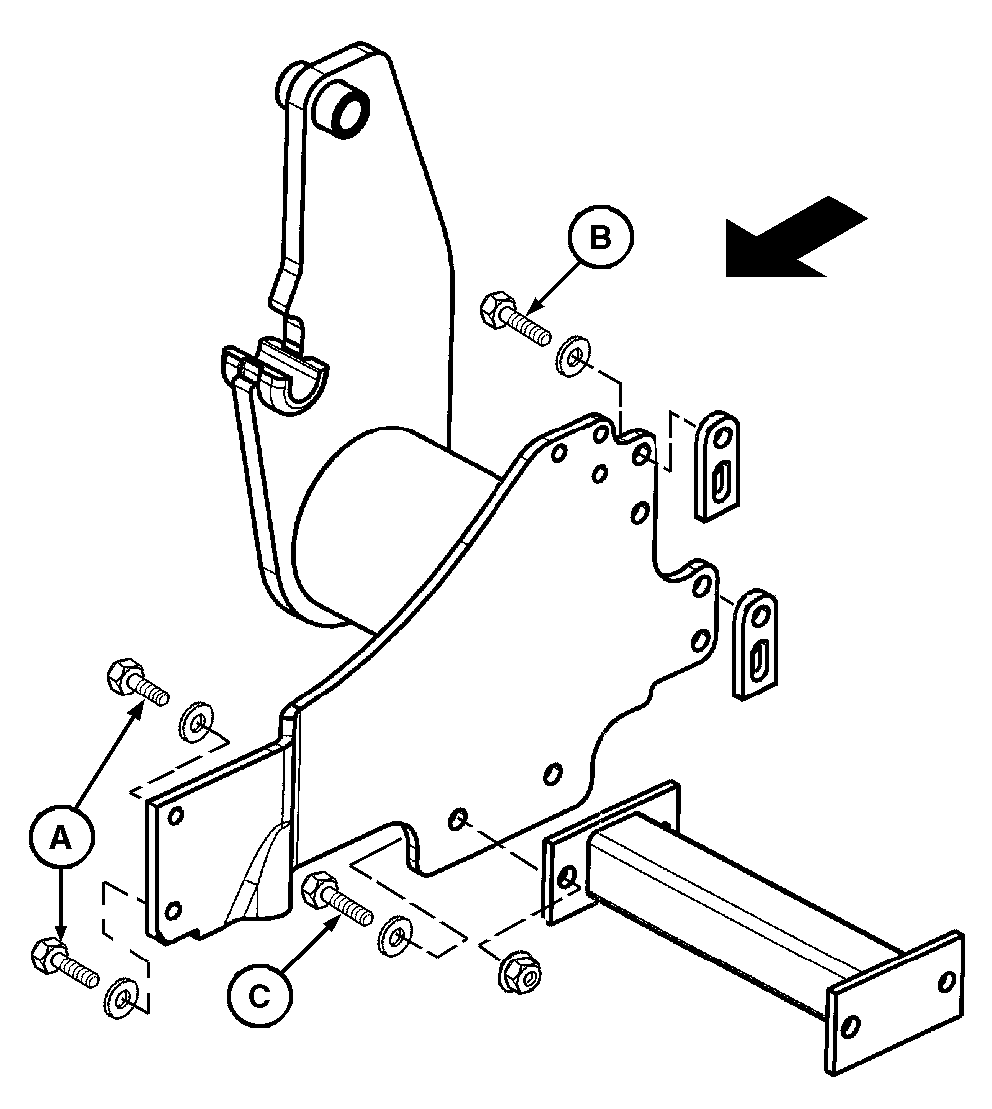

W04179
