Attaching Loader

2. Attach ballast box. (See procedure in Preparing the Tractor section.)

3. Drive tractor slowly, between loader masts.

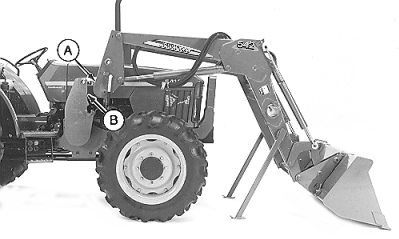

4. Stop tractor with backs of loader masts (A) approximately 75 mm (3 in.) ahead of fronts of mounting frames (B).

5. Engage tractor parking brake and/or place transmission in PARK .

6. Shut off tractor engine and remove key.

A-Loader Mast
B-Mounting Frame

OUO6077,0001887 -19-06JUN07-1/9

CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

7. Move control lever(s) back and forth and side-to-side (if applicable) several times to relieve hydraulic pressure. (See tractor Operator's Manual.)

OUO6077,0001887 -19-06JUN07-2/9

CAUTION: Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected correctly.

IMPORTANT: Before connecting hoses, make sure that fittings are free of dirt and debris.

NOTE: Hoses connections are identified by matching the colored cap on the hose end with the same colored plug on the control valve coupler. If caps are missing or not equipped, see IDENTIFYING HOSE CONNECTIONS in Service section for replacements.

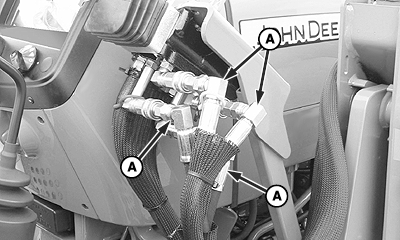

8. Mid-Mount Couplers: Connect hoses (A) using colored dust caps to match hoses to couplers, if equipped.

A-Loader Hoses

OUO6077,0001887 -19-06JUN07-3/9

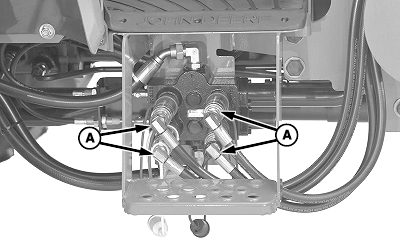

Rear Couplers (SCV:

a. Connect hoses using colored dust caps to match hoses to couplers, if equipped.

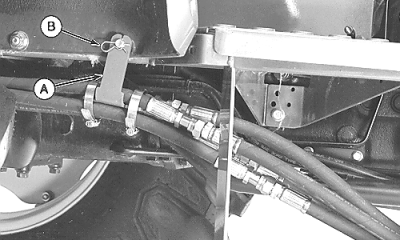

b. Install hose bracket (A) under foot platform and fasten with spring pin (B).

9. Start tractor engine.

A-Hose Bracket
B-Spring Pin

OUO6077,0001887 -19-06JUN07-4/9

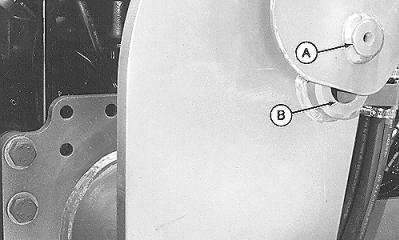

A-Pin
B-Saddle

OUO6077,0001887 -19-06JUN07-5/9

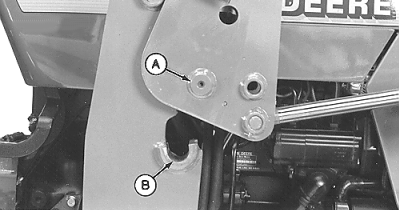

12. Extend bucket cylinders until pins (A) rest in saddles (B) and stands are lifted off the ground.

13. Release parking brake and/or place transmission in NEUTRAL .

A-Pin
B-Saddle

OUO6077,0001887 -19-06JUN07-6/9

IMPORTANT: To avoid damage to stands, be sure stands do not contact ground, and remain 75 mm (3 in.) off ground when retracting lift cylinders.

14. Slowly retract lift cylinders (pulling tractor forward) until bushing holes in mast and frame are aligned.

15. Dump bucket to allow for parking stand removal.

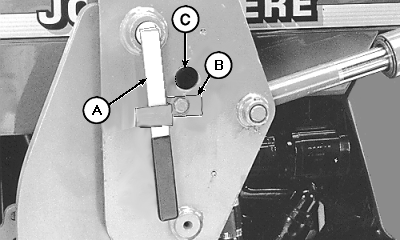

16. Remove pins (A) from storage holes (C) and insert through mast and frame holes. Fasten with clips (B).

17. Engage tractor parking brake and/or place transmission in PARK .

18. Shut off tractor engine and remove key.

A-Pins
B-Clips
C-Storage Holes

OUO6077,0001887 -19-06JUN07-7/9

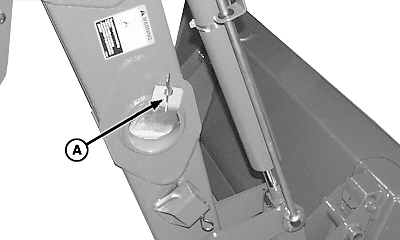

A-Spring Locking Pin

OUO6077,0001887 -19-06JUN07-8/9

NOTE: 522 parking stands are round and 542 stands are square. Storing procedure is the same. 542 shown.

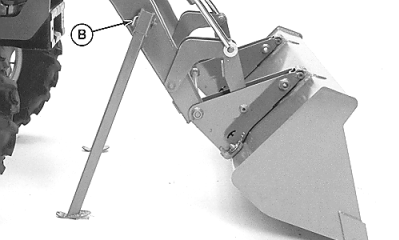

20. Remove pins (B) and left-hand parking stand from bracket.

21. Replace pin and spring pin in bracket.

22. Insert stand into storage tube and fasten with spring pin (A).

23. Repeat above steps for stand on right-hand side of loader.

24. Start tractor engine.

25. Extend lift cylinders and lift bucket from ground.

26. Retract bucket cylinders (roll back) and lower to the ground.

27. Shut off tractor engine and remove key.

A-Spring Pin
B-Pin and Spring Pin

OUO6077,0001887 -19-06JUN07-9/9
