Using Bucket Level Indicator

NOTE: Top of bucket has a "flat top" feature to help operator to determine that bucket is level.

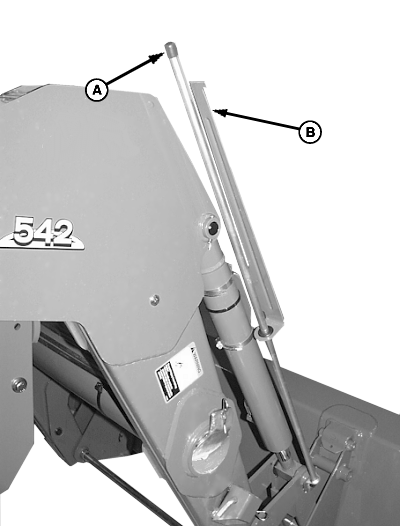

With bucket level indicator (B) properly adjusted, bucket should be level when bottom of cap (A) is flush with top of indicator as viewed from operator's seat.

NOTE: Indicator position for a bucket will not be the same for an attachment.

When using level indicator for an attachment other than a bucket : Level the attachment and reposition the indicator on the bucket cylinder. (See ADJUSTING BUCKET LEVEL INDICATOR in Service section.)

A-Cap
B-Level Indicator
