Identifying Hose Connections-Loader Operated with Mid-Mount Valve

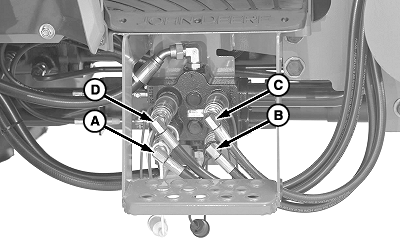

5000 Series Tractors Without Cab

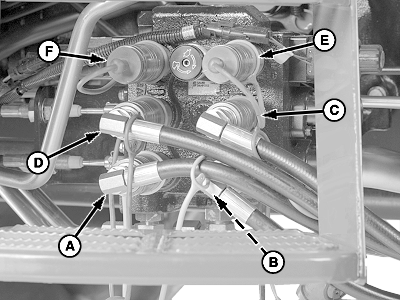

5000 Series Tractors With Cab

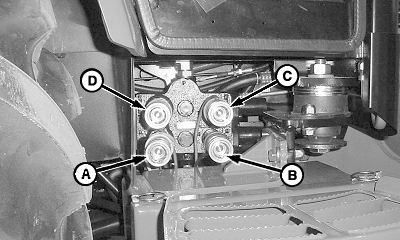

Deluxe 3-Function (5000 TWENTY-FIVE Series)
A-Bucket Cylinder Head End
B-Bucket Cylinder Rod End
C-Lift Cylinder Head End
D-Lift Cylinder Rod End
E-Grapple Cylinder Head End
F-Grapple Cylinder Rod End
G-Clamp

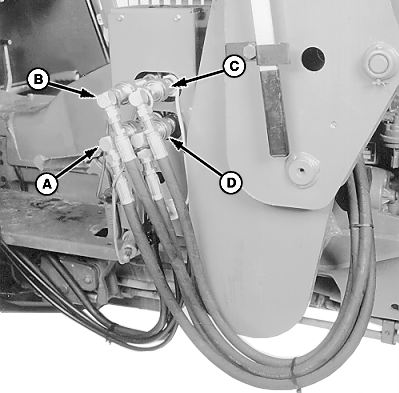

20, 30, 40, 50 and 55 Series Tractors
OUO6077,00018A8 -19-06OCT06-1/2
CAUTION:
Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to tractor selective control valves as shown.
Key
Dust Cover Color
Loader Cylinder Work Port
A
Yellow
Bucket Cylinder-Head End
B
Black
Bucket Cylinder-Rod End
C
Blue
Lift Cylinder-Head End
D
Red
Lift Cylinder-Rod End
E
Orange
Grapple Cylinder-Head Enda
F
Green
Grapple Cylinder-Rod Enda
a542 Loader only
Hydraulic line use is also described on face of clamp (G).
CAUTION:
Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to tractor selective control valves as shown.
