 CAUTION:

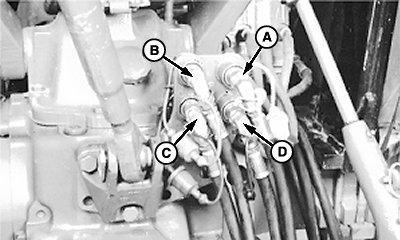

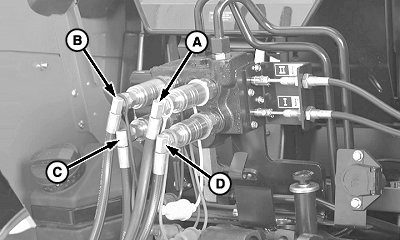

Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to tractor selective control valves as shown.
| |
Dust Cover Color |
Symbol
Reference |
Loader Cylinder
Work Port |
| A |
Yellow |
II (retract) |
Bucket Cylinder-Head End |
| B |
Black |
II (extend) |
Bucket Cylinder-Rod End |
| C |
Blue |
I (extend) |
Lift Cylinder-Head End |
| D |
Red |
I (retract) |
Lift Cylinder-Rod End |
| E |
Orange |
III (extend) |
Grapple Cylinder-Head Enda |
| F |
Green |
III (retract) |
Grapple Cylinder-Rod Enda |
| a542 Loader only |

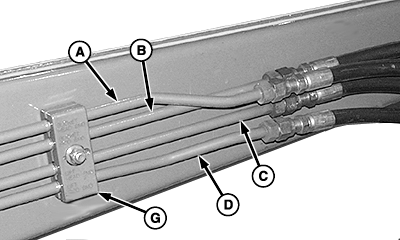

Hydraulic line use is also described on face of clamp (G).

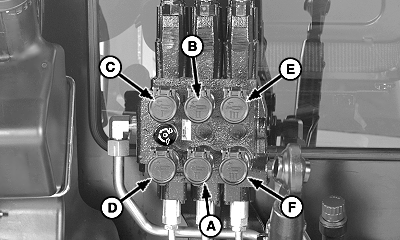

A-Bucket Cylinder Head End
B-Bucket Cylinder Rod End
C-Lift Cylinder Head End
D-Lift Cylinder Rod End
E-Grapple Cylinder Head End
F-Grapple Cylinder Rod End
G-Clamp
|
