Identifying Hose Connections-Loader Operated with Mid-Couplers

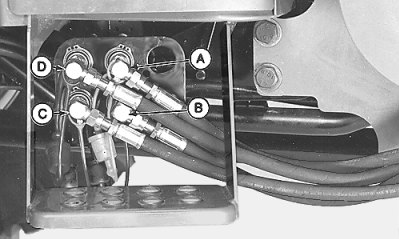

Tractors Without Cab

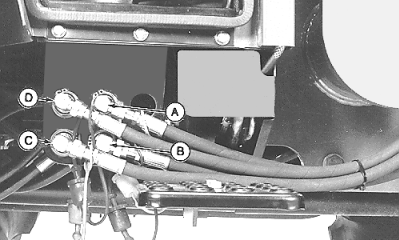

Tractors With Cab

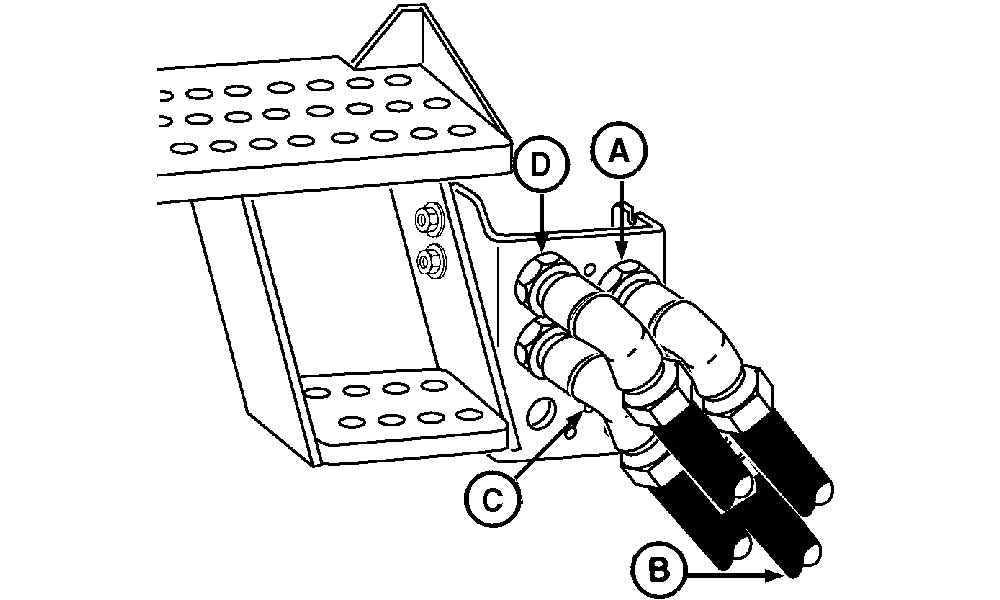

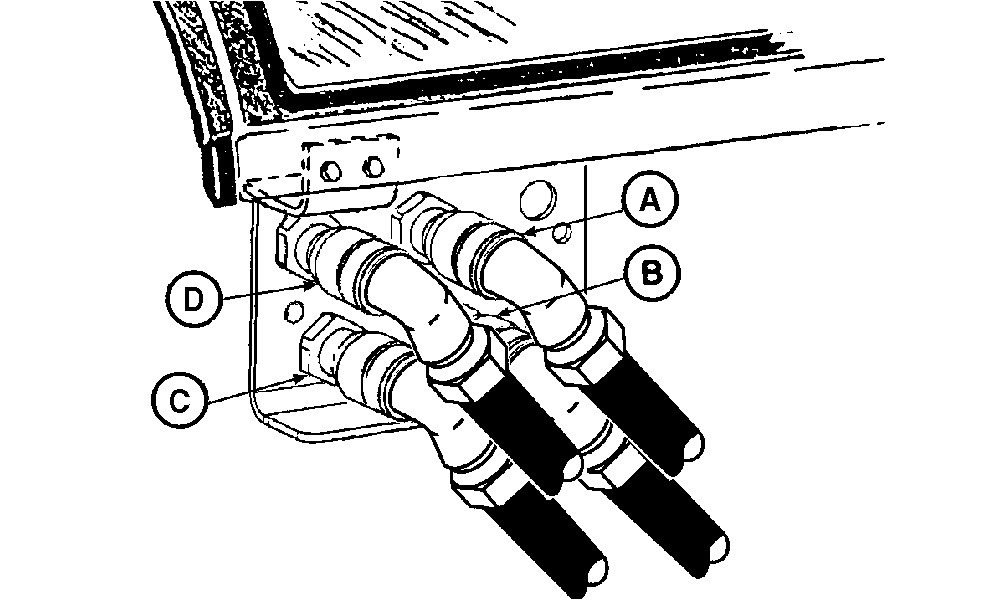

Narrow Tractors Without Cab
A-Bucket Cylinder Head End
B-Bucket Cylinder Rod End
C-Lift Cylinder Head End
D-Lift Cylinder Rod End
E-Clamp
CAUTION:
Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to tractor selective control valves as shown.
Key
Dust Cover Color
Hydraulic Function
A
Yellow
Bucket Cylinder-Head End
B
Black
Bucket Cylinder-Rod End
C
Blue
Lift Cylinder-Head End
D
Red
Lift Cylinder-Rod End
NOTE:
Grapple cylinder ports/dust covers not shown.

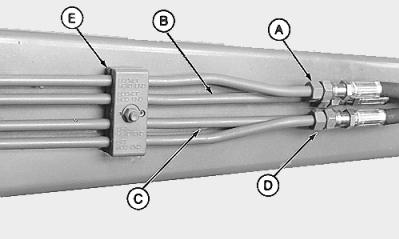

Hydraulic line use is also described on face of clamp (E).
CAUTION:
Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to tractor selective control valves as shown.
