Check Lift Cylinder Position (522 Loader)
 CAUTION:
For 5105 and 5205 tractors, using lift cylinders in holes (A) will increase the lift capacity beyond the safe limit. This excess lift capacity could result in tractor instability causing tractor rollover and personal injury or death. Install lift cylinders in holes (B) for 5105 and 5205 tractors.

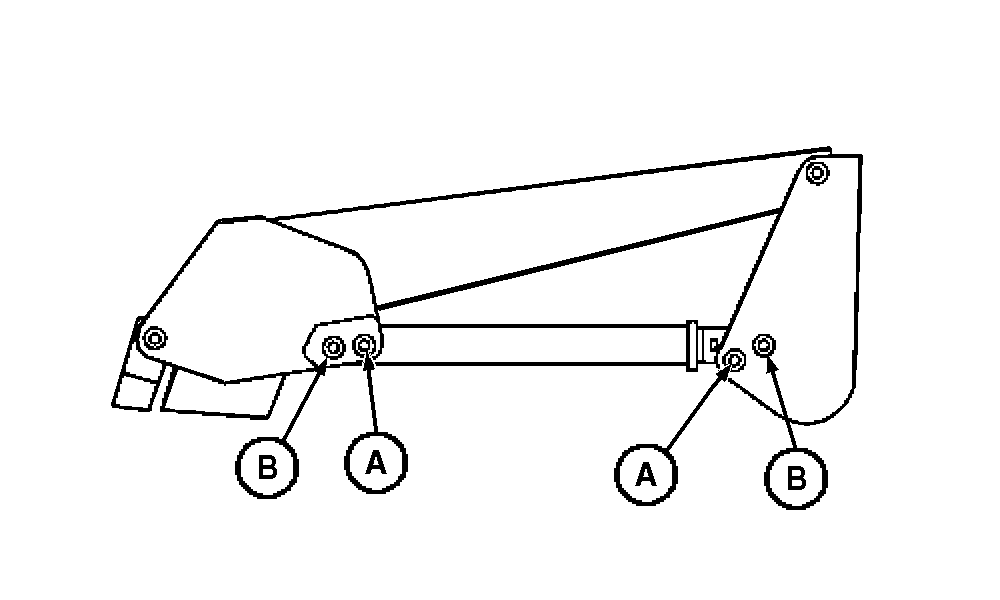

There are two lift cylinder positions. Loaders are shipped with cylinder pinned in holes (A).
-
All tractors except 5105 and 5205:
Use holes (A)
-
5105 and 5205 tractors:
Change the lift cylinders to holes (B)
|
