Front Tread and Steering Stop Settings-5105 and 5205 MFWD TractorsTractor steering stop lengths without loader vary from those listed below. Be sure to adjust steering stops using chart below. See your tractor Operator's Manual to make tread setting adjustments. Due to dimensional differences between tire manufacturers, check for tire clearance with loader and tractor equipment and adjust as necessary. |
|
| Tread Setting - 5105 and 5205 Tractors mm (in.) |
||||||
|---|---|---|---|---|---|---|
| (D) 1491 (58.7) |
(D) 1587 (62.5) |
(E) 1632 (64.3) |
(F) 1745 (68.7) |
(G) 1784 (70.2) |
(H) 1897 (74.7) |
|

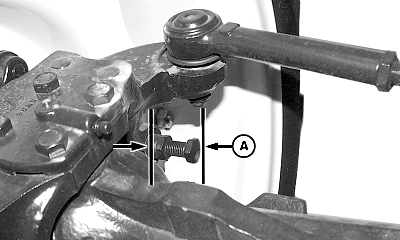

| Front Tire Size | Steering Stop Length (A) mm (in.) |
|||||
| 12.5/80-18 | 60 (2.36) | 60 (2.36) | 20 (0.8) | a | a | a |
| 9.5-24 | Not recommended | Not recommended | 25 (1.0) | 20 (0.8) | 50 (2.0) | 50 (2.0) |
| aThis tread setting not available with 12.5/80 - 18 Tire | ||||||
OUO6077,00018CA -19-21JUL04-1/1 |
