Prepare the Tractor

1. Prepare the tractor for the loader. Refer to Preparing the Tractor section for the following:

  • Removing front weights
  • Tire requirements
  • Tread settings
  • Rear ballast requirements
  • Adjust SCV lever stops or change SCV detent selector and flow control, if equipped.

OUO6077,00018D0 -19-18MAY07-1/2

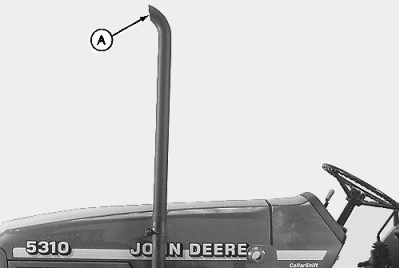

IMPORTANT: To help prevent damage to the tractor or loader caused by interference between the loader and exhaust pipe, position the exhaust pipe outlet (A) forward.

2. Tractor with factory-installed mounting frames and vertical exhaust: Change exhaust pipe position.

3. Install mounting frames. (Refer to Installation Instructions available online.)

4. Install hood guard. (Refer to Installation Instructions available online.)

5. Install hydraulic valves/controls. (Refer to Installation Instructions available online.)

W03106


A-Exhaust Pipe Outlet

OUO6077,00018D0 -19-18MAY07-2/2
