Mounting Frame Hardware-5225 and 5325 Tractors

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

Tighten hardware to specification in the sequence shown.

Specification

Hardware (B) -Torque 530 N·m (390 lb-ft)
Hardware (A and C) -Torque 610 N·m (450 lb-ft)

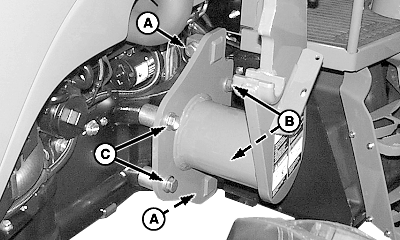

A-Cap Screw, M20 x 90
B-Cap Screw, M20 x 55
C-Cap Screw, M20 x 100

W07155
W07053

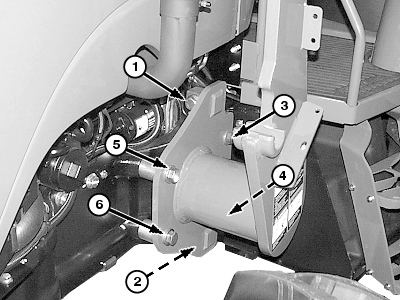

Torque Sequence

OUO6077,00018EE -19-14JAN07-1/1
