Mounting Frame Hardware-5425, 5525, 5603, 5083E Limited, 5093E Limited, 5101E Limited, and 5625 Tractors

IMPORTANT: Avoid damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

Tighten hardware to specification in the sequence shown.

Specification

Hardware (B) -Torque 530 N·m (390 lb-ft)
Hardware (A) -Torque 610 N·m (450 lb-ft)


A-Cap Screw, M20 x 90
B-Cap Screw, M20 x 55

W07009
W07054

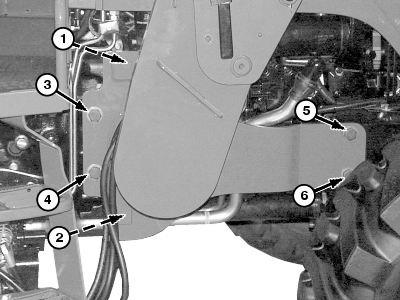

Torque Sequence

OUO6077,00018FE -19-02MAY08-1/1
