Changing SCV Detent Selector and Flow Control (If Equipped)

causym CAUTION: Help prevent personal injury or death caused by objects falling on the operator. Selective control valves have an automatic cylinder extend position (detent) that must be locked out for loader operation. Unintentional movement of the control lever to the detent position may cause the loader to raise to full height unexpectedly and the load to fall back on the operator.

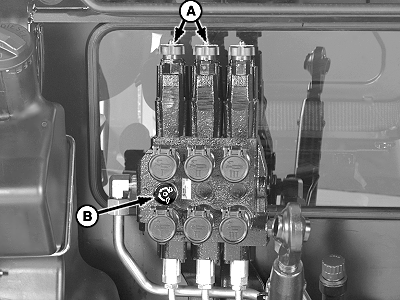

NOTE: 5000 TWENTY-FIVE series tractor deluxe valve shown.

See your tractor Operator's Manual to perform the following procedures:

1. Turn detent selector knobs (A) to "loader" position.

2. Adjust valve flow control knob (B) for fastest rate of operation.

W07136


A-Selector Knobs
B-Flow Control Knob

OUO6077,0001904 -19-19NOV04-1/1
