Mounting Frame Hardware-5425N and 5525N Narrow Tractors

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

Tighten hardware to specification in the sequence shown.

Specification

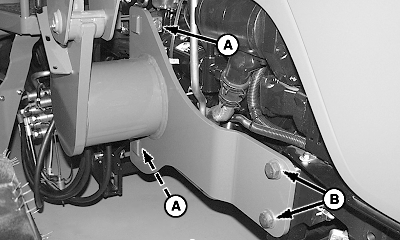

Hardware (B) -Torque 530 N·m (390 lb-ft)
Hardware (A) -Torque 610 N·m (450 lb-ft)


A-Cap Screw, M20 x 90
B-Cap Screw, M20 x 55

W07143
W07058

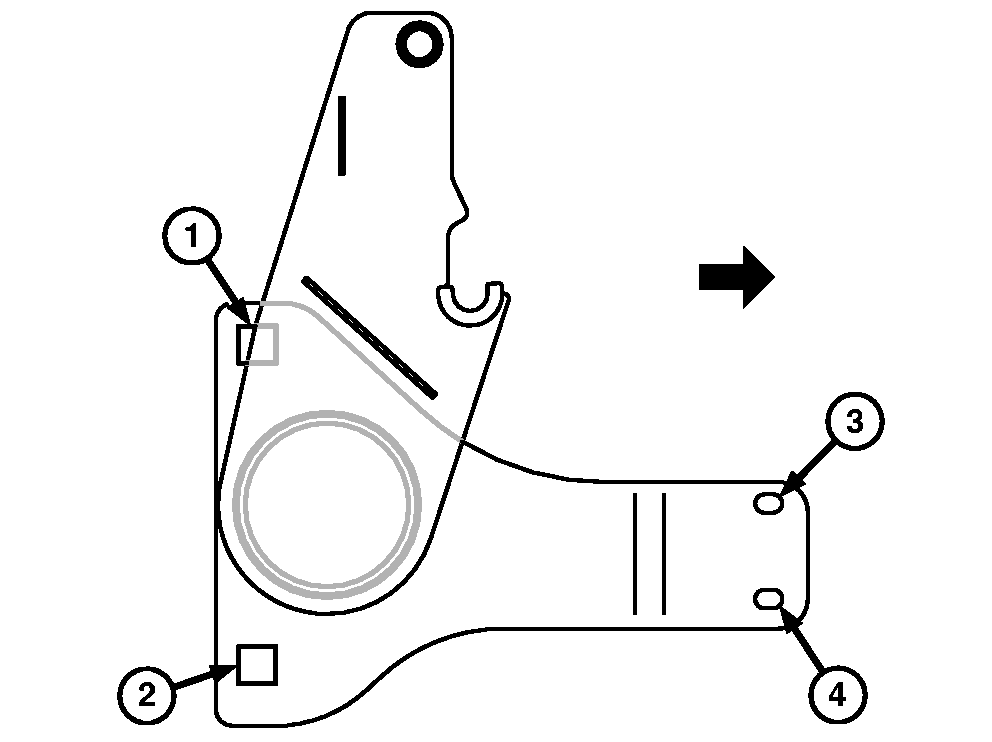

Torque Sequence

OUO6077,0001906 -19-14JAN07-1/1
