Identifying Hose Connections-5103, 5203, 5303 and 5403 Tractors
|
|
Loader Hoses
|
ICV Hoses (If Equipped)
|
|
 CAUTION:
Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control levers only if hoses are connected to tractor selective control valves as shown.
| Key |
Dust Cap Color |
Symbol Reference |
Hydraulic Function |
| A |
Yellow |
II (retract) |
Bucket Cylinder-Head End |
| B |
Black |
II (extend) |
Bucket Cylinder-Rod End |
| C |
Blue |
I (extend) |
Lift Cylinder-Head End |
| D |
Red |
I (retract) |
Lift Cylinder-Rod End |
|

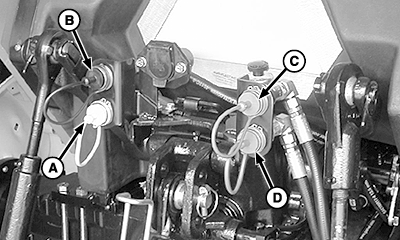

Rear Couplers
|
|
|
OUO6038,0001A77 -19-18APR06-1/1
|
|
