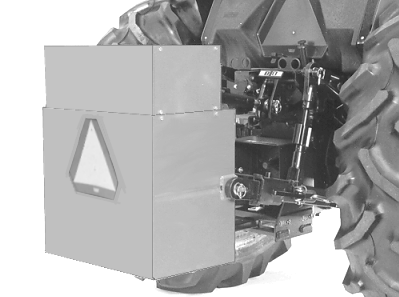

Adding Ballast to HitchThree ballast box options are available as attachments:
Use sand, concrete or tractor weights in box to meet ballast requirements. A 3-point hitch implement may be used as ballast, but it must meet weight required. The following chart shows approximate total weights of the box with ballast materials. Use it as a guideline to add ballast to your tractor hitch. |
|
| Weight | Sand (Dry) | Concrete | Portland Cement |
|---|---|---|---|
| SMALL BALLAST BOX WITHOUT EXTENSION | |||
| Material | 217.5 kg (480 lb) | 315.5 kg (695 lb) | 401.5 kg (885 lb) |
| Empty Box | 58.5 kg (129 lb) | 58.5 kg (129 lb) | 58.5 kg (129 lb) |
| Total | 276 kg (608 lb) | 374 kg (824 lb) | 460 kg (1014 lb) |
| SMALL BALLAST BOX WITH EXTENSION |
|---|
| Material | 306.5 kg (676 lb) | 443.5 kg (977 lb) | 531.5 kg (1172 lb) |
| Empty box | 72.5 kg (160 lb) | 72.5 kg (160 lb) | 72.5 kg (160 lb) |
| Total | 379 kg (835 lb) | 516 kg (1137 lb) | 604 kg (1330 lb) |
| LARGE BALLAST BOX |
|---|
| Material | 450 kg (990 lb) | 700 kg (1540 lb) | 950 kg (2095 lb) |
| Empty box | 170 kg (375 lb) | 170 kg (375 lb) | 170 kg (375 lb) |
| Total | 620 kg (1365 lb) | 870 kg (1915 lb) | 1120 kg (2465 lb) |
OUO6038,0001B11 -19-03FEB05-1/1 |
