Operating Loader with Multi-Function Control Lever

Operate loader from operator's seat only. Remain at controls until operating cycle is complete.

causym CAUTION: To help prevent personal injury caused by unintentional lowering of loader, do not use "FLOAT" position to lower loader. Loss of control results and the loader will fall to the ground due to it's own weight.

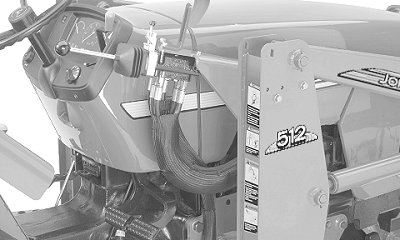

NOTE: Refer to labels on bracket located above multi-function control lever.

Lever returns to NEUTRAL by itself from all positions except FLOAT. Pull lever back/down to release from FLOAT.

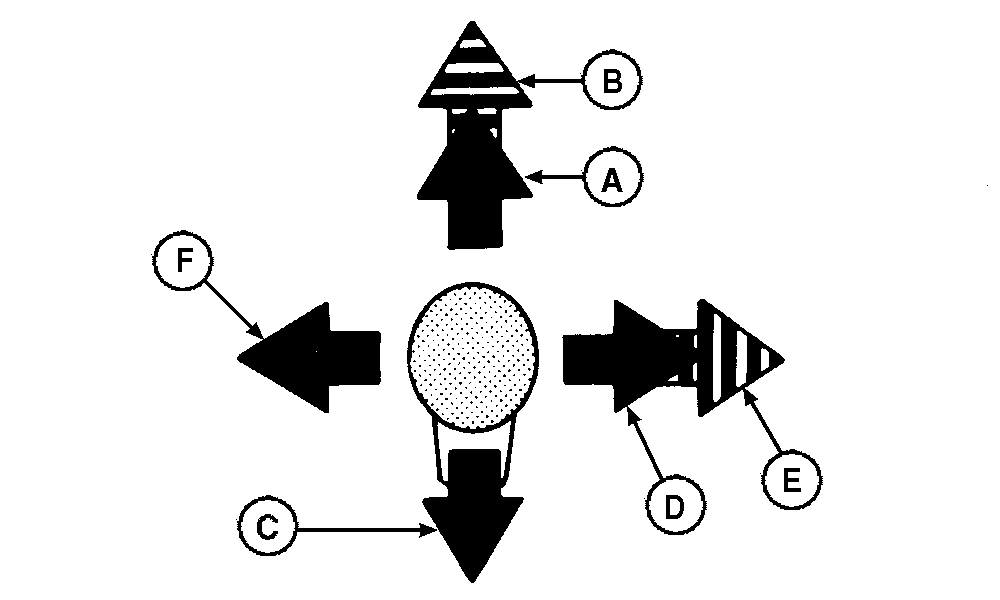

Key Lever Movement Loader Operation
A Forward/Up Boom Lower
B Locked Forward/Up Boom Float
C Back/Down Boom Raise
D To Right-Hand Side Bucket Dump
E To Full Right-Hand Sidea Bucket Fast Dump
F To Left-Hand Side Bucket Roll Back
aSlightly extra effort is required to move lever to the full right-hand position. (Bucket cylinder force is reduced in Fast Dump. Use it only for dumping materials.)



NOTE: Oil flow limitations may not allow you to do two loader operations at one time such as RAISE and ROLL BACK. The operation that requires the least hydraulic force will move first.

Operate hydraulic control to relieve system pressure after stopping engine.

NOTE: Multi-Function control lever has transport lock. (See LOCKING OUT MULTI-FUNCTION CONTROL LEVER in this section.)
