Leveling Bucket with Bucket Level Indicator (If Equipped)

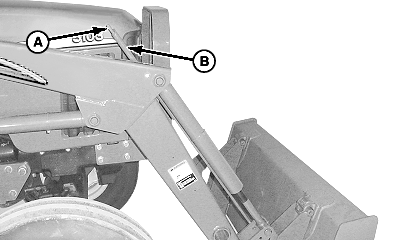

Bucket Level Indicator allows you to see when the bucket or other attachment is level. Bucket/attachment should be level when top of rod (A) is flush with tube (B).

NOTE: Indicator position for a bucket will not be the same for a bale spear or pallet fork

When using indicator for an attachment other than a bucket ; level attachment and put a new mark on rod at top of tube.

A-Level Indicator
B-Tube

OUO6038,0001B22 -19-18APR06-1/1
