Every 50 Hours

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

Tighten Mounting Frame Hardware-All Except 5105, 5205, 5225 and 5325 Tractors

Tighten hardware (A and B) to specifications.

Specification

Hardware (A), M16 -Torque 275 N·m (203 lb-ft)
Hardware (B), M20 -Torque 530 N·m (390 lb-ft)

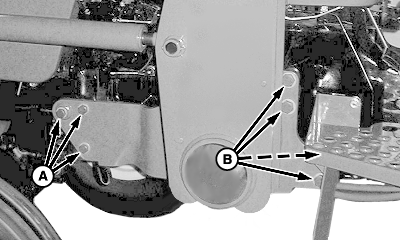

W06450

Left-Hand Side Shown


A-Hardware, M16
B-Hardware, M20

OUO6038,0001B36 -19-18APR06-1/3

Tighten Mounting Frame Hardware-5105 and 5205 Tractors

Tighten hardware (A, B and C) to specifications.

Specification

Hardware (A and C), M16 -Torque 275 N·m (203 lb-ft)
Hardware (B), M20 -Torque 530 N·m (390 lb-ft)


A-Hardware, M16
B-Hardware, M20
C-Hardware, M16

W06459

Left-Hand Side Shown

OUO6038,0001B36 -19-18APR06-2/3

Tighten Mounting Frame Hardware-5225 and 5325 Tractors

Tighten all hardware to specification in the following order: A, D, B, C, F, E.

Specification

Hardware (A, D, E and F) -Torque 610 N·m (450 lb-ft)
Hardware (B and C) -Torque 530 N·m (390 lb-ft)


A-Cap Screw, M20 x 90
B-Cap Screw, M20 x 55
C-Cap Screw, M20 x 55
D-Cap Screw, M20 x 90
E-Flange Head Cap Screw, M20 x 100
F-Flange Head Cap Screw, M20 x 100

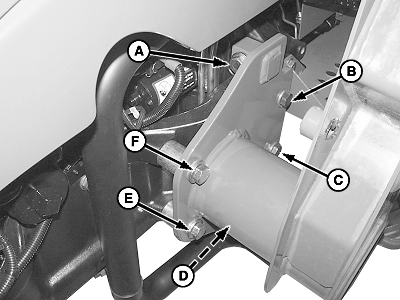

W07092

Right-Hand Side Shown

OUO6038,0001B36 -19-18APR06-3/3
